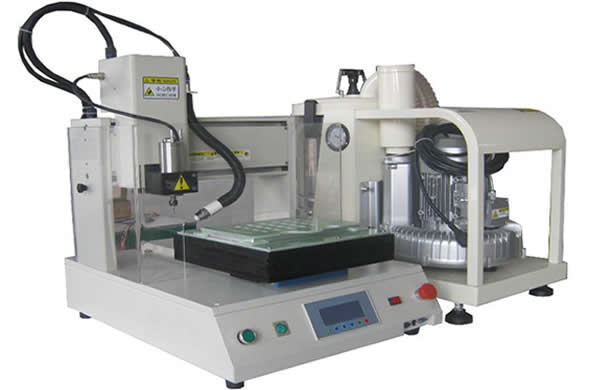

Bench-top Automatic PCB Router adopt step motor and driving system and high quality routing spindle which can ensure<0.05mm routing accuracy,x,y,z moving speed can reach 500mm/s,routing speed can reach 100m/s.Friendly interface make programming very easy,Equipped with vaccum cleaner which can provide a clean work enviroment.
| ● Bench-top Automatic Router adopt x,y,z step motor and driving system, ensure machine run smooth and precisely. routing accuracy less than 0.05mm. |

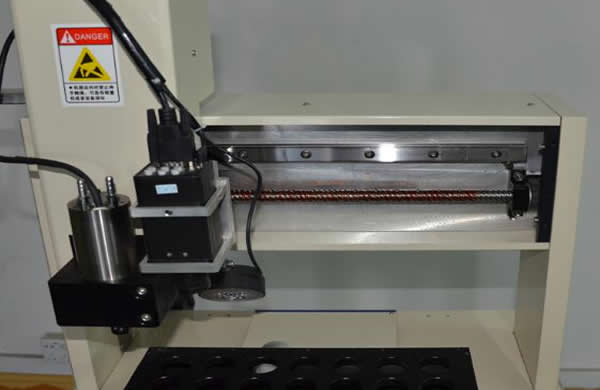

| ● X,Y,Z axis step driving system |

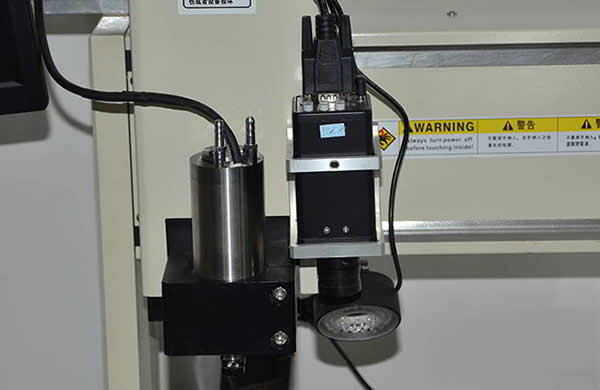

| ● Euipped with quality, air cooling long service life routing sprindle made in Taiwan. |

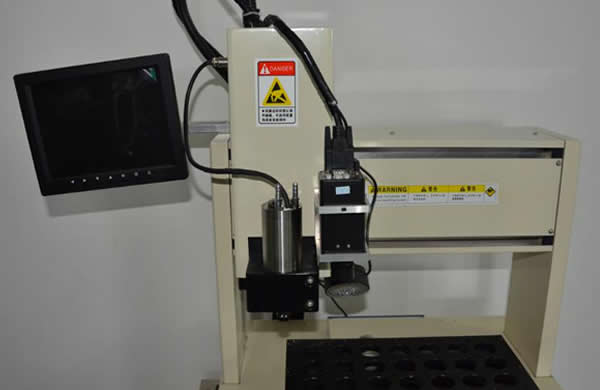

| ● Optional CCD and monitor make programming easier. |
| ● Equipped With vaccum cleaner provides a clean and low noisy work enviroment. |

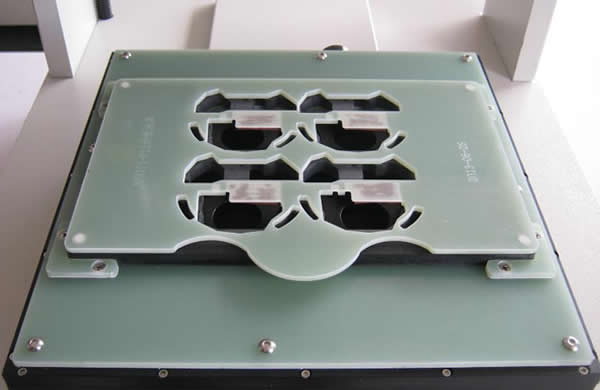

| ● Optional fixture according to customer's requirement. |

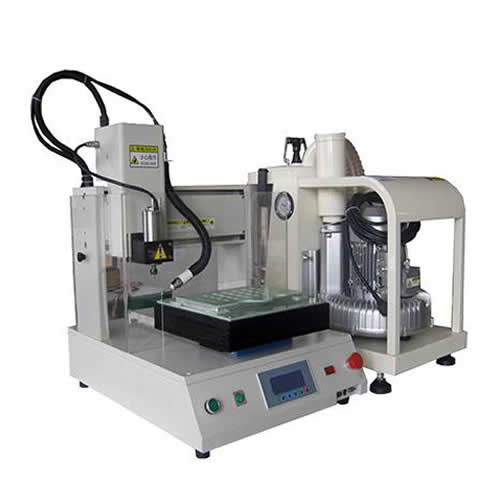

AR-300 Bench-top Automatic PCB Router Feature
● Friendly interface make programming very easy. |
● Boards are separated without bending or breaking. |
● Euipped with quality ,air cooling long service life routing sprindle. |
● With vaccum cleaner provides a clean and low noisy work enviroment. |
● Moving speed can reach 500mm/s, routing speed can reach 100mm/s, geatly improve producticon efficiency. |
● Bench-top Automatic Router adopt x,y,z step motor and driving system ,ensure machine run smooth and precisely. routing accuracy less than 0.05mm. |
Bench-top Automatic PCB Router Specification: | ||
Model | AR-300 | AR-400 |
Machine size(mm) | L660mm*W520mm*H680mm | L760mm*W620mm*H685mm |
Power Supply | 0.4-3.5mm(hard board) | Single work station |
Weight | FR4,glass fiber. | Single work station |
Work station | Single work station | Single work station |
PCB Thiickness | 0.4-3.5mm(hard board) | 0.4-3.5mm(hard board) |
Max component height | 30mm | 30mm |
PCB Material | FR4,glass fiber | FR4,glass fiber |
Power | 300W | 300W |
Vacuum Cleaner Power | 1500W | 1500W |
Work table size(mm) | 300mm*300mm | 400mm*400mm |

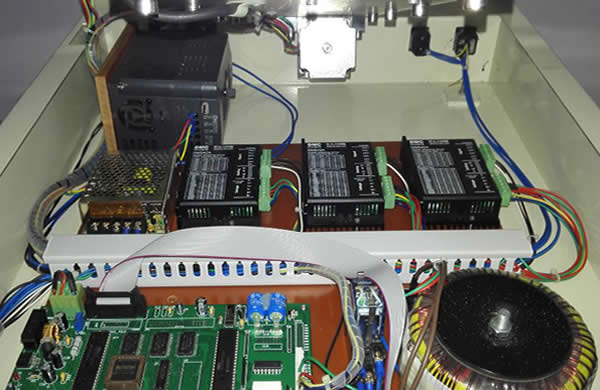

Drive system | X/Y/Z axis step motor control | X/Y/Z axis step motor control |
Routing Spindle | 50000rpm/min Air cooling | 50000rpm/min Air cooling |
Routing Speed | 1-100mm/sec | 1-100mm/sec |
Driving System Repeatability | ±0.05mm | ±0.05mm |
Moving speed | Max 500mm/s | Max 500mm/s |
Milling Cutter | ∅0.8-∅3.0 L | ∅0.8-∅3.0 L |
AR-300 Bench-top Automatic PCB Router Include
1 PC. AR-300 Bench-top Automatic PCB Router with:
◎ Vaccum cleaner
◎ Routing sprindle
◎ 3 aix step motor and driving system
◎ Milling cutter 10pcs
◎ 1 year parts warranty
Optional configuration:
◎ Customized fixture
◎ Auxiliary programming CCD and monitor
