Inline Multiple Groups Of Blades PCB Separator MDS-902

Quick Overview

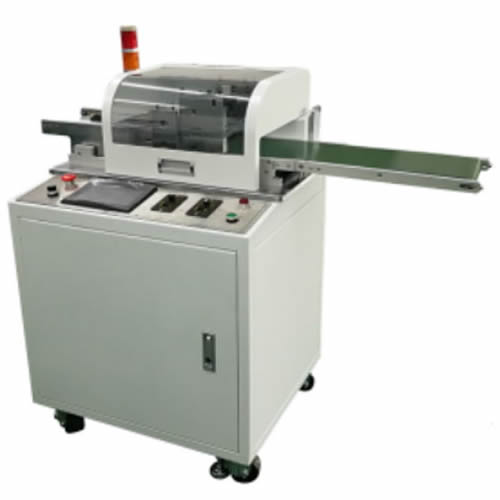

MDS-902 is equipped with 1 set of multiple blades which can cut FR4 PCB without burrs and deformation, it can separate max 170mm width board simultaneouly.MDS-902 is equipped with automatic loading conveyor which can be easily connect with automatic production line.

MDS-902  is equipped with 1 set of multiple blades which can cut FR4 PCB

●   MDS-902  is equipped with 1 set of multiple blades which can cut

FR4 PCB  without burrs and deformation , the distance between

upper and lower cutter can be precisely adjusted, it can  separate max

L400*W170mm  FR4 panel board with max  upper 15mm and bottom

15mm at one time, all cutters are made of SKD11 high speed steel with

long service life.



The pitch of cutter can be changed by replacing spacers to meet different width of panel board requirement.

●   The pitch of cutter can be changed by replacing spacers to meet

different width of panel board requirement.



MDS-902 is equipped with automatic PCB

●   MDS-902 is equipped with automatic PCB  loading conveyor which

can be easily connected with automatic production line., SMEMA

connector is optional.



The machine adopts touch screen and PLC control system which can monitor production information,easy to operate.

●   The machine adopts  touch screen and PLC control system which

can monitor production information,easy to operate.



Full english operation interface, easy to operate.

●   Full english operation interface , easy to operate.

Inline Multiple Groups Of Blades PCB Separator MDS-902 Features:

1. MDS-902  is equipped with 1 set of multiple blades which can cut FR4 PCB  without burrs and deformation  , it greatly improve the production efficiency and reduce labour costs  .

2. The distance between upper and lower cutter can be precisely adjusted, it can  separate max  L400*W170mm FR4 panel board with max bottom 15mm and upper 15mm high component at one time.

3. MDS-902 is equipped with automatic PCB  loading conveyor which can be easily connected with automatic production line.

4. Cutting speed is adjustable.

5. All blades are made of endurable SKD11 high speed steel with long service life.

6. The machine adopts  touch screen and PLC control system which can monitor production information,easy to operate.

7. Machine is equipped with safety protection device.

8. Suitable cutting material of PCB :FR4,glass fiber.

Inline Multiple Groups Of Blades PCB Separator MDS-902 Specification

  Model

  MDS-900

  MDS-901   MDS-902

  PCB loading mode

  Automatic loading with PCB clamping device

  Manual loading

  Automatic loading by conveyor

  Suitable PCB material

  Aluminum , FR4

  Aluminum , FR4

   FR4

  Blade groups number

  2 groups

  2 groups

  1 groups

  PCB Thickness range

  0.8-3.5mm

  0.8-3.5mm

  0.8-3mm

  Max component height

  Bottom 0mm , upper 15mm

  Bottom 0mm , upper 15mm

  Bottom15mm , upper 15mm

  Min panel width

  8 mm

  8 mm

  8 mm

  Max PCB width

  standard 230mm , optional 280mm

  standard 230mm , optional 280mm

  170MM

  PCB length

  Min 700mm , max length with  optional inlet and outlet conveyor

  standard 200mm-1200mm ,optional 200mm-1500mm

  Max 400mm

  Inlet platform length

   with Optional 1000mm input conveyor ,1500mm input conveyor

   1200mm

  420mm

  Outlet conveyor length

   standard 1000mm, optional 1500mm

   standard 1000mm, optional 1500mm

  690mm

  Conveying direction

  Only left to right

  Only left to right

  Only left to right

  Conveying height

   900±20mm

   900±20mm

   900±20mm

  Blade material

  SKD11

  SKD11

  High speed steel SKD11

  Blade lifespan

  approx 800,000 times (1.0m long , 3mm thick aluminum board)

  approx 800,000 times (1.0m long , 3mm thick aluminum board)

  Approx 800,000 times

  Voltage

  220V/50Hz

  220V/50Hz

  1PH, 220V/50HZ

  Machine Dimension

  L1950*W690*H1120mm (without input conveyor )

  L2510*W690*H1120mm

  L1250*W610*H1050mm

  Machine weight

  158kg

  158kg

  110kg

  Power

  400W

  400W

  200W

Inline Multiple Groups Of Blades PCB Separator  MDS-902 Configuration

Standard configuration:

 ●  Multiple Groups Of Blades PCB Separator MDS-902.

 ●  Automatic PCB  loading conveyor.

 ●  690mm output belt conveyor

 ●  1 set of cutter module.

 ●  6 pcs of circular blades.

 ●  12 pcs of customized spacers.

 ●  1 year parts warranty.

Optional configuration:

 ●  Circular blade 902.

 ●  Customized spacer.

 ●  SMEMA connector.
