AR-450M PCB Saparator adopt servo driving system and high quality routing spindle which can ensure < 0.05mm routing accuracy, x, y1, y2, z moving speed can reach 500mm/s, routing speed can reach 50mm/s. and machine is equipped high resolution CCD which can automatically position fiducail mark and correct coordinate offset. windows operation system and self developed software make programming very easy, 2 work stations design greatly improve production efficiency. External silence vaccum cleaner can provide a clean work enviroment.
| ● X, Y1, Y2, Z axis adopt panasonic servo motor and it's driving system, ball screw drive with rail & slider, make movement smoothly and precisely. |
| ● Equipped with High resolution CCD makes programming very easy. It has mark positioning function, can automatically correct the coordinate offset. Also the CCD has the function of scanning bar code and QR code, which can scan the bar code and QR code information on the PCB board directly, and then call the finished program on the machine to cut the PCB board directly. Option MES system, Through the CCD on the router and MES system software for the router, the machine can be docked with the factory's MES system. it will be convenient for program call and data download, production log upload. |
| ● High quality, air cooling long service life routing spindle. The machine is equipped with an ion air gun. The ion wind blown from the bottom of the spindle can eliminate the static electricity generated during the cutting process. |
| ● ∅0.8-∅3.0 mm milling cutter |
| ● Double working table design, positioning more accurately than cyclinder driving mechanism, improve production efficiency. |
| ● The machine is equipped with the broken milling cutter detection function on the spindle. When the milling cutter is broken, the machine will stop, and the software interface will alarm. |
| ● 400W high-power spindle, which can cut Al board below 2.0mm thickness (machine needs to use custom-cut aluminum board milling cutter) |
| ● self developed softeware makes programming and operating very easy. The software interface can set the Z-axis cutting depth and set different Z-axis cutting depths depending on the thickness of the PCB. Ensure that the Z-axis can cut the PCB at a fixed height (suitable for PCBs with components on the back of the cutting point, ensuring that the milling cutter does not damage the components on the back of the PCB). |
| ● Milling cut can be used as 2 or 3 section, just set the parameter on sofeware, it has greatly prolonged milling cut' service life. |
Double Station Automatic PCB Router AR-450M Features: |
1. AR-450M PCB Separator adopt x, y1, y2, z servo motor and driving system and ball screw, linear guide rail, ensure machine run smooth and precisely. moving accuracy less than 0.05mm, routing accuracy less then 0.05mm. |
2. Double work station design makes continuous running, greatly improve production efficiency. |
3. Machine is equipped with high resolution CCD, use direct teach programming method with cross cursor of CCD, very easy to operate, software can excute point, line, arc, circle etc command to cut different shape of panelled board, it has mark positioning function, can automatically correct the coordinate offset when PCB position changed. Also the CCD has the function of scanning bar code and QR code, which can scan the bar code and QR code information on the PCB board directly, and then call the preprogrammed program on the machine to cut the PCB board directly. |
4. Industrial PC, Windows system and full english self developed softeware makes programming and operating very easy. |
5. Euipped with quality, air cooling long service life routing spindle. |
6. External silence vaccum cleaner provide a clean and low noise work environment. |
7. Milling cut can be used as 2 or 3 section, just set the parameter on sofeware, it has greatly prolonged milling cut' service life. |
8. Equipped with anti static ionizing wind which can eliminate static and remove dust. |
9. Option MES system, The machine can be docked with the factory's MES system. it will be convenient for program call and data download, production log upload. |
10. The machine is equipped with the broken knife detection function. When the Router bit is broken, the machine will stop, and the software interface will alarm. |
Double station Automatic PCB Router AR-450M Specification | |
Model | AR-450M |
Work station | 2 work station |
PCB Size(Max.) | 300×400mm* 2pcs |
PCB Thickness | 0.4-2.0mm(hard board) |
PCB Material | FR4, glass fiber, Al |
Max component heigh | bottom side: 50mm /top side: 15mm |
Cutting Speed(Max) | 50mm/s |
Moving speed | Max 500mm/s |
Control method | line, circle, arc, U,L |
Repeat Accuracy | ±0.05(mm) |
Routing Accuracy | ±0.05(mm) |
Drive system | X/Y1/Y2/Z Four axis servo motor control |
Vacuum cleaner Power | 3PH AC 380V 50HZ/2.2 KW (External on the Router) |
Routing Spindle | 42000rpm/min, Air cooling |
Milling Cutter | ∅0.8,-∅3.0 |
Tool life control | Software program control |
Programming method | Direct teach programming method |
Machine Total Power Supply | 3 phase AC 380V 50HZ/ 4.5 KW |

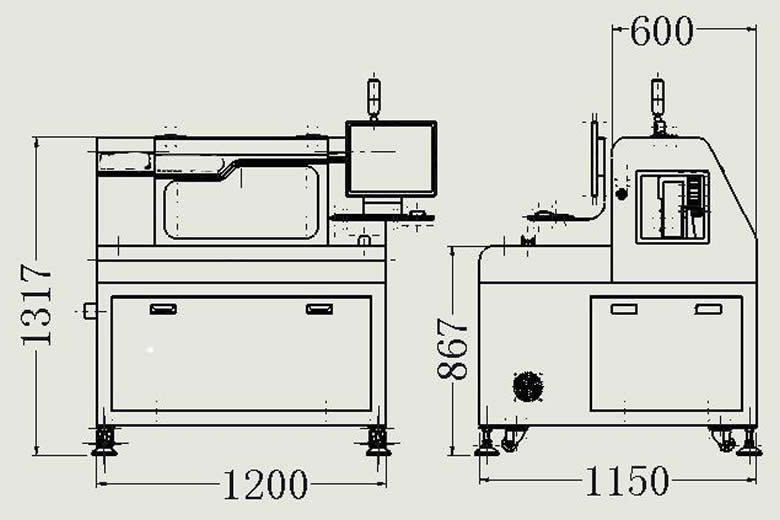

Machine size | L1200mm×W1150mm×H1317mm |
Vacuum cleaner size | L805mm*W920mm*H1950mm |
Machine Weight | 600 KG |
Vaccum cleaner weight | 300 KG |
Double station Automatic PCB Router AR-450M configuration: |
Standard configuration: |
● Double station Automatic PCB Router AR-450M. |
● Industrial PC ,monitor, Keyboard,mouse. |
● 4 aix driving system. |
● External Vaccum cleaner. |
● Milling cutter 10pcs. |
● Servo motor driven width mechanism. |
● CCD. |
● Routing spindle. |
● safety light curtain. |
● 1 year parts warranty. |
● Broken milling cut auto detection. |
● Ion air gun on the spindle. |
Optional configuration: |
● Customized fixture. |
● Milling cutter. |
● MES system docking. |
