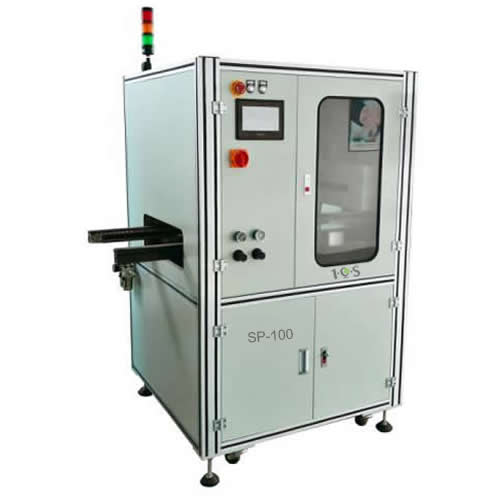

Economical PCB Coating machine SP-100 with single wide coating valve which coat the PCB board back and forth very quickly, the PCB conveying speed is adjustable, it is very suitalbe for whole big board coating process.
|
Shipping information About the World shipping,pls send e-mail to us at sales@1clicksmt sales@1clickmachine.com or call our professional sales engineer at +86-0769-85303739 On Skype: any questions,pls feel free to contact us by skype-oneclickmachine |
|
| ● High precision valve can meet high precision coating requirements. ● UV inspection light to check coating quality. |
PCB Coating Machine SP-100 Features : |

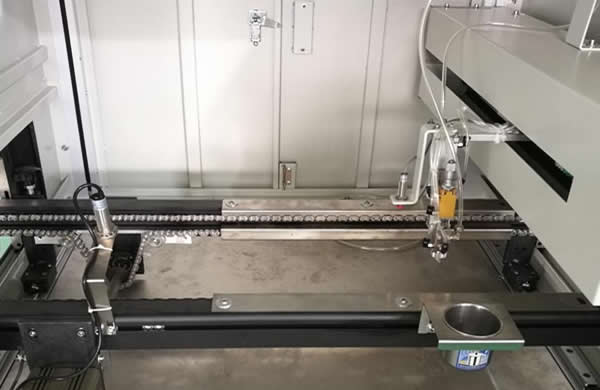

● Economical PCB Coating machine SP-100 with single wide coating valve which coat the PCB board back and forth very quickly , the PCB conveying speed is adjustable , it is very suitalbe for whole big board coating process . the max coating area can reach 400mm*450mm. |
● High precision wide spray valve can meet high precision coating requirements. |
● Step motor with sychronous belt driven mechanism. |
● Manual rail width adjustment mechanism. |
● Equipped with UV inspection light. |
● PLC and touch screen control , full english interface ,very easy to use. |
● Standard equipped with 10L pressure tank *1set and 2 L cleaning tank *1set. |
PCB Coating Machine SP-100 specification : | |
Model | SP-100 |
Work Area | L400mm*W450mm |
Axis number | single axis with step motor and sychronous belt control |
Standard Valve | Wide spray valve |
Optional Valve | Narrow spray valve |
Coating thickness | 0.03 -1mm |
Max PCB Component Height | 70mm |
Programming | Input parameter |
Conveyor Height | 920mm±20mm |
Conveyor direction | only left to right |
Conveyor Speed | 0-3M/min |
Width adjustment | Manual width adjustment |
Operation system | PLC and touch screen |
Glue Tank | 10L glue tank*1set , 2L cleaning tank *1 set |
Power Supply | AC220V 50~60Hz , 1P |
Total Power | 1 KW |
Air Requirement | 0.5-0.7Mpa |
Overall Size W*D*H | L1180mm*W920mm*H1700mm |
Weight | 260 KG |

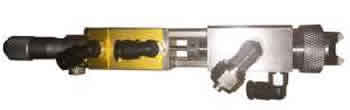

Wide spray valve | ● big spray swath ,high efficiency .Coating thickness can be adjusted by changing air pressure and moving speed. ● Coating width cand be adjusted by changing air pressure. ● wide spray valve is applied to areas where: 1.large coating area without barrier. |
| |
● Spraying swath: 15-30mm ● edge definition : 3mm ● Air pressure: 0.1-0.4Mpa ● Applied to max viscosity of the glue：1000cps | |
Narrow spray valve | ● Coating thickness can be adjusted by changing air pressure and moving speed. ● Coating width can be adjusted by changing air pressure. ● Narrow spray valve is applied to areas where: 1.most of coating. |
| |
● Spraying swath: 6-10mm ● edge definition : 1mm ● Valve stoke : 0.01mm-5mm ● Air pressure: 0.2-0.4Mpa ● Applied to max viscosity of the glue：1000cps | |
Selective Coating Machine Valve specification | ||
Valve parameter | Narrow spray valve | Wide spray valve |
spraying swath | 6-10mm | 15-30mm |
air pressure | 0.2-0.4Mpa | 0.2-0.4Mpa |
applied to max glue viscosity | 1000 cps | 1000 cps |
edge definition | 1mm | 3mm |
applied to | 1. atomazation film can be adjusted by air pressure and moving speed, applied to most of product. | 1.big spray swath, highefficiency, applied to large coating area without barrier. |
Standard configuration | |
● PCB Coating Machine SP-100. | |
● Wide spray valve *1set | |
● Manual width adjustment system. | |
● 10L pressure tank *1set | |
● 2L cleaning tank *1set | |
● Ultraviolet inspection lamp | |
● 1 year parts warranty | |
Optional configuration: | |
● Narrow spary valve | 1set |
● Customized power supply 1PH, 110V/60HZ | 1set |
