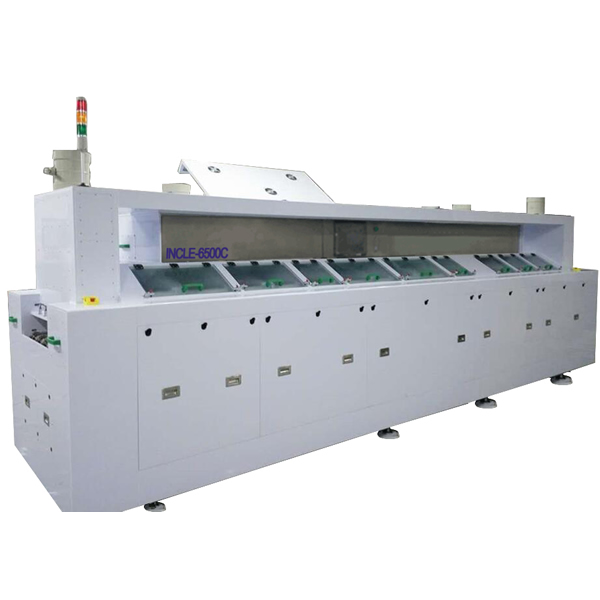

    Inline PCBA Cleaning Machine-INCLE-5800C

    Quick Overview
    Cleaning equipment

    INCLE-5800C is an inline PCBA cleaning machine including prewash ,chemical cleaning, DI water cleaning and drying.it can eliminate ion contamination to avoid potential short and open circuits problems.

    Main material is stainless steel and polypro plumbing. There is no CPVC and no gluing.Touchscreen and PLC control system,  overheating alarm and position system.meanwhile , with automatic water add



    Datasheet(PDF)

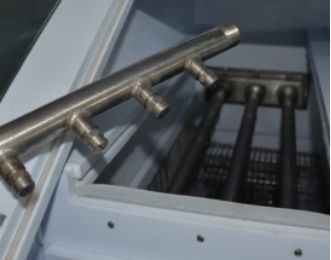

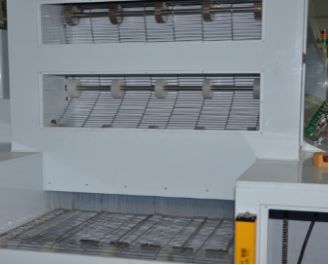

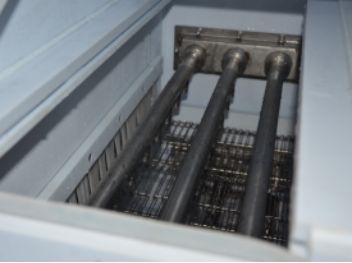

    Upper & bottom equiped with spray bar & spray nozzle. According different application, spray bar & nozzle can be changed to meet the required cleaning result.




    Plumbing:Stainless Steel or Polypro plumbing. There is no CPVC and no gluing

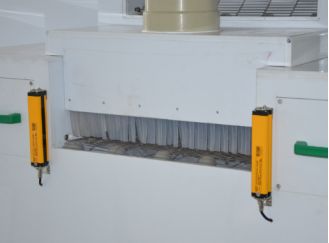

    At the entrance to install safety grating


    		Dual mesh belt conveyor to avoid PCB moving during cleaning (option)

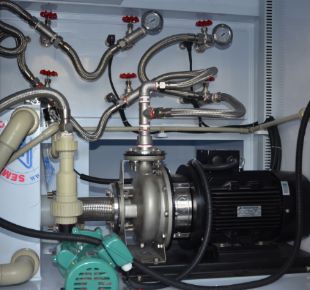

    Chemical cleaning pump: much more powerful cleaning pump. Two 10HP pump were used for chemical cleaning.

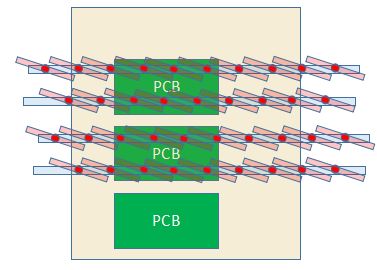

    With higher density sprayer nozzle(see left side explanation picture), every corner will be sprayed by several nozzles on same spray tube.  That means this machine can get higher production yield than others.

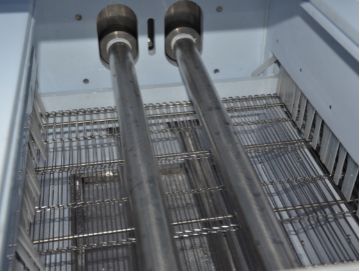

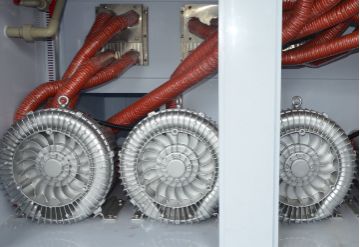

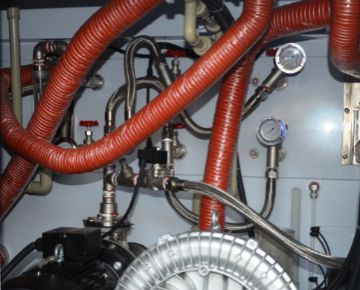

    individual powerful 10hp blower for drying PCB with air knife. Meanwhile, each air knife is equipped with inline heater. So to be sure PCB can get better drying performance even in high production.

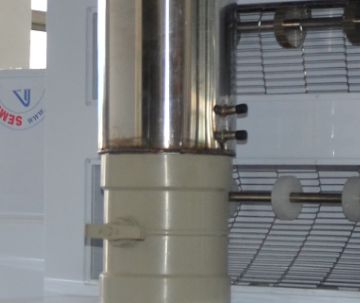

    Condensator equipped at exhausting SUS tube. In this way, the exhausting mist air close to chemical tank will be condensated and get as mush as chemical back to tank.  After test result, this can save more than 50% chemical consumption compare to other machines.  Since no any other machine install condensator, or very short path condensator inside machine, no enough cooling path to cold the mist and condensate the chemical back.

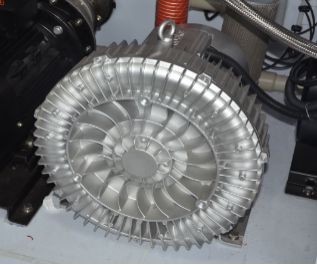

    Individual blower supply air to two top & one bottom air blade to take chemical off the PCB before PCB leave chemical tank.  So to reduce as much as possible chemical was carried by PCB and save the chemical consumption.   This is only be found in INCLE-5800C machine. In other machine, it's only two weak blade to do this job, not enough effective.

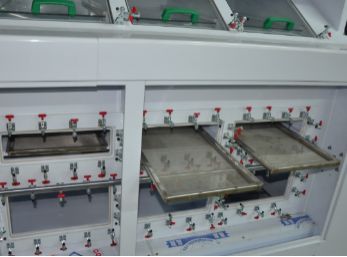

    Removable filters

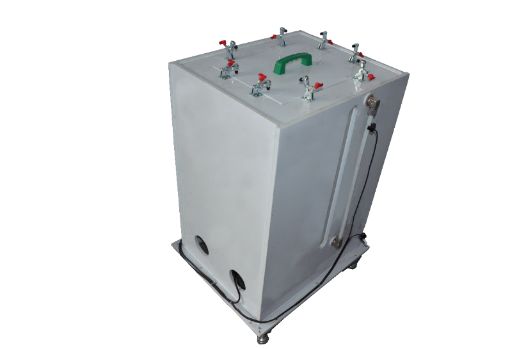

    Chemical auto adding tank is outside machine. Operator will mixed the chemical & DI water as required ration and add to this tank, no need to open machine to add.  When chemical level is down, pump will work to feed mixed chemical automatically .

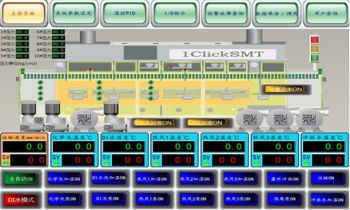

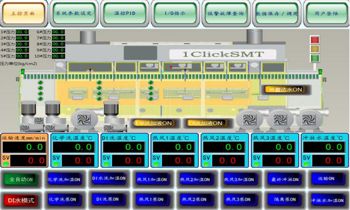

    Main Screen :

     for all on/off switch. Also can choose from Pure DI water cleaning model, Chemical cleaning & DI rinse model.

     All pressure, temperature, conveyor speed show at main screen.

    		Cleaning tank's temperature can be set and maintain stable.

    Cleaning tube's pressure can set lower & up limit, be sure the cleaning pressure is in range. Inlet DI water's quality is monitored by resistance meter.  conveyor speed can be set in touchscreen and maintain stable.

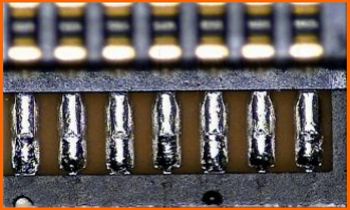

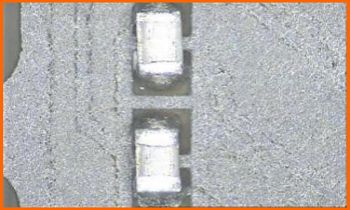

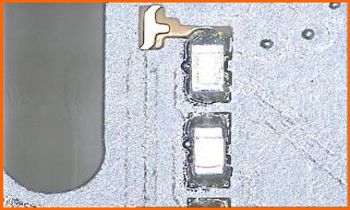

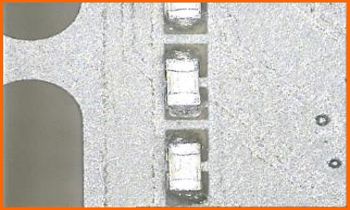

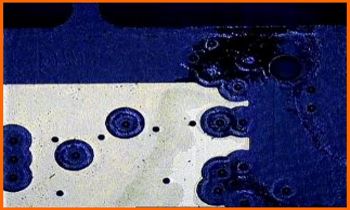

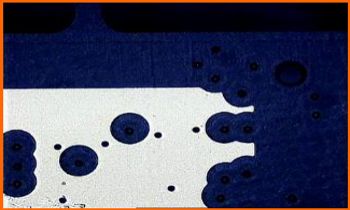

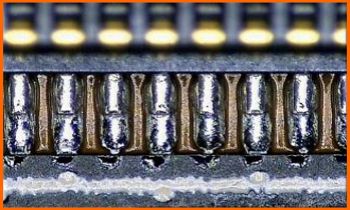

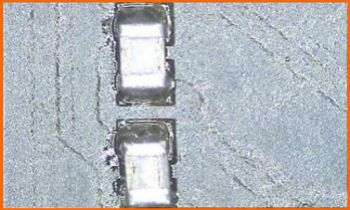

    BeforeAfter
    BeforeAfter
    BeforeAfter
    BeforeAfter

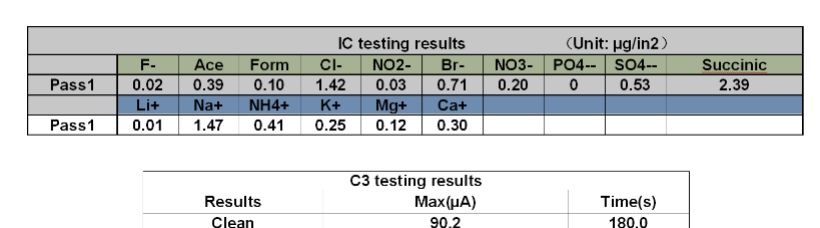

    Conclusion



    According to acceptable standard, every cm2 need to contain less than 1 .56ug Na. Above test result is 3.47ug/in2, it's equal to 0.2278ug per cm2. Approved to meet standard.

    According to acceptable standard, in 60seconds the electrical current need to be less than 500ua. Approved to meet standard.



    Inline PCBA Cleaning Machine-INCLE-5800C

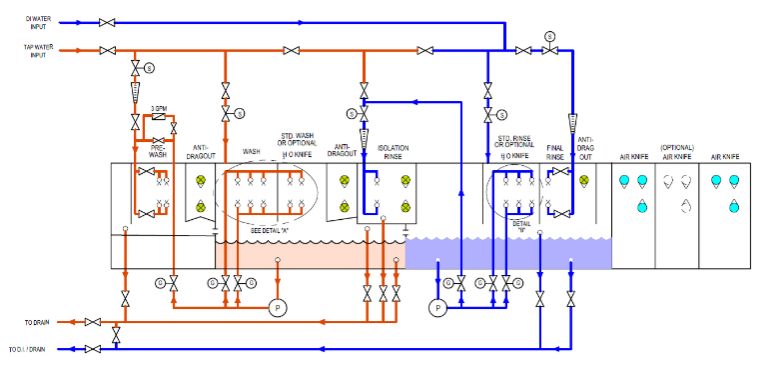

    1.Chemical cleaning:Prewash+Wash  2.Isolation:Air knife isolation+water isolation+Air knife islotion 3.DI cycle rinse：DI water rinse 4.DI Final rinse:DI final rinse 5.Hot air knife drying:3 sections hot air knife drying.

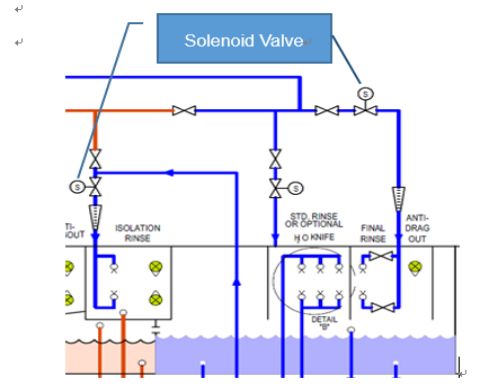

    Economy running: Only when PCB passed,the DI isolation &DI final rinse will work.In this way,during runing machine will drain water only when PCB pass.

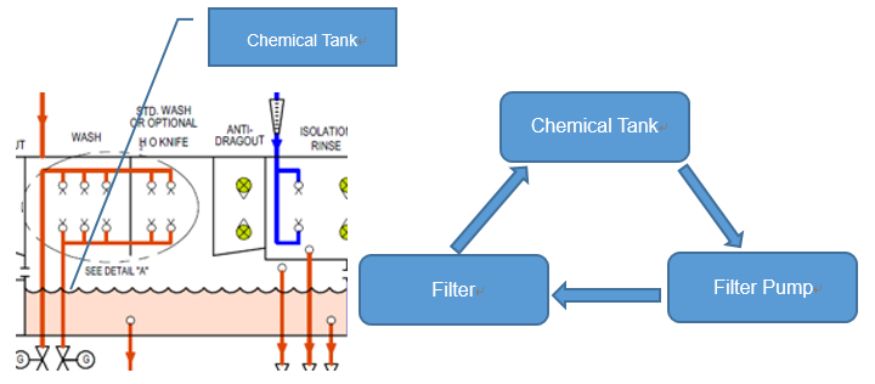

    Chemical tank individual filtering pump:It is an infinite cycle system which will be  activated during cleaning

    Chemical Flow Direction-Chemical Tank-Filter Pump-Filter-Chemical Tank

    Inline PCBA Cleaning Machine-INCLE-5800C specification

      ITEM

    		  Narrow Para   ITEM   Para

      conveyor speed

      35cm/min

      Temperature

      65 c degree

      prewash

      On

      Isolation rinse

      On

      chemical wash

      On

      DI rinse up pressure

      35psi

      chemical wash up pressure

      35psi

      DI rinse bottom pressure

      35psi

      chemical wash bottom pressure

      35psi

      DI rinse tank temperature

      50 c degree

      edge solvent

      Keyzen A4625B

      final rinse

      On

      solvent

      13%

      hot air temperature

      70 c degree
