Offline PCBA Cleaner AQ-650

Quick Overview
Cleaning equipment

AQ-650 is mainly developed for the cleaning of PCBA in the electronics manufacturing industry. It uses the industry's most advanced cleaning process “water-based liquid” for cleaning, achieving 99% cleaning and environmental protection. The machine consists of a cleaning system, a rinsing system, a drying system, a filtration system.

Visualization of the whole process: Cleaning room equipped with visual windowcleaning process can be monitored at all time.

●   Visualization of the whole process: Cleaning room equipped with visual windowcleaning process can be monitored at all time.

●   Large cleaning baskets:610mm(L) ×560mm(W) × 100mm(H) 2 layer , Meet larger PCBA sizes and higher cleaning production.



Spraying System: Upper and bottom spraying system, each 12 sets nozzles , total 48 sets nozzle to make sure 360 degree cleaning.

●   Spraying System: Upper and bottom spraying system, each 12 sets nozzles , total 48 sets nozzle to make sure 360 degree cleaning.

●   The most scientific nozzle design(patent ):Increasing nozzles from left to right, Enhance the cleaning efficiency, Distribution nozzles up and down, Completely solve the blind clean area



Spray Pump System

●   Spray Pump System:  High power(5.5KW) & high efficiency stainless steel spray pumps, spray pressure can reach 60 ~ 80PSI, pressure can be adjusted based on actual requirement to clean the contamination.



Nozzle pressure is adjustable

●   Nozzle pressure is adjustable



Convenient liquid add System:

●   Convenient liquid add System:  Adopt “Dosatron Automatic mixing System” from Germany, it can set according to proportion (5% ~ 25%) automatic proportioning DI water and chemical liquid.



Circulating and Filtering System:

●   Circulating and Filtering System: Adopt 0.45μm filter, can filter dust and other particulate impurities. So that the chemical liquid recycling can be maintained better cleaning performance and longer life. Meanwhile ,can reduce operating costs.



DI water conductivity mointor.

●   DI water conductivity mointor.



Independent chemical liquid adding pump.

●   Independent chemical liquid adding pump.



Drying system.

●   Drying system.


Offline PCBA Cleaner AQ-650 Features:

●   Visualization of the whole process: Cleaning room equipped with visual window cleaning process be clear at a glance.

●   Large cleaning baskets:610mm(L) ×560mm(W) × 100mm(H) 2 layer , Meet larger PCBA sizes and higher cleaning production.

●   The most scientific nozzle design:Increasing nozzles from left to right, Enhance the cleaning efficiency, Distribution nozzles up and down, Completely solve the blind clean area.

●    Nozzle pressure adjustable design: Solve the small size of PCBA in the cleaning process by spray under high pressure collision, splash  problem.

●    With standard diluents  slot heating system: Greatly promoted cleaning efficiency. Shorten cleaning time.

●   Touch screen interface:  According to different PCBA model set with different process parameters, Quick edit and variety of different process parameters can be stored program, including, solvent temperature, cleaning time, rinse times/ time, rinse temperature, dry time, drying temperature, conductivity monitoring parameters, etc... According to different permissions, operator, management authority.

●   High standards of cleanliness: Ion pollution completely accords with the 610D IPC - Ⅰ class standard (less than 1.5 ug/cm2, and the U.S. army standard of MIL28809 Ⅰ class standard.

●    Convenient liquid adding mode: Can manually add chemical liquid , also can set according to proportion (5% ~ 25%) automatic proportioning DI water and chemical fluid.

●   Comprehensive cleaning system: according to the product surface residual organic matter, inorganic matter thoroughly effective cleaning.

●    Automatic cleaning mode: in a clean indoor finish all cleaning, rinsing and drying process, small size, compact structure.

Offline PCBA Cleaner AQ-650 specification :

  Model

  AQ-650

  Clean Basket Size

  Max 610mm(L) X560mm(W) X100mm(H)mm 2layers

  Max Product Size

  Max 600mm(L) X520mm(W) X150mm(H)mm

  Min Product Size

  Min 20mm(L) X20mm(W) X150mm(H)mm , the small product need customized fixture to fix it.

  Dilution Tank Capacity

  Max  70L

  Chemical Liquid Tank Capacity

  30L

  Spray Tank Capacity

  17L-23L

  Cleaning method

  360°Whirl/Ejection for cleaning; hot air for drying

  Cleaning Time

  5~20 Minutes ( Reference )

  Rinsing Time

  1-2 Minutes ( Reference )

  Rinsing Times

  1-10(Set)

  Drying Time

  20~30 Minutes ( Reference )

  Cleaning Liquid Recovery Filter

  0.45um ( filter tiny impurities: solder paste, flux, rosin and pollutants )

   Rinsing Liquid Discharge Filter

  0.45um ( filter tiny impurities: solder paste, flux, rosin and pollutants )

  Dilution Liquid Heating Temperature

  Room temperature~75°

  Drying Heating Temperature

  Room temperature~75°

  Resistivity Meter Monitoring Range

  0mΩ~18mΩ.cm

  DI Water Supply

  30~60L/min

  DI Water Pressure

  0.2-0.4Mpa

   DI Water Entrance Pipe Connection

  6/8  inch

  Dilution Tank Heating Power

  9KW

  Spray Tank Heating Power

  3KW

  Drying Heating Power

  8KW

  Cleaning Motor

  5.5KW

  Total Power

  32KW

  Total Current

  55A

  Air consumption

  200-400L/Min

  Air Supply

  0.45Mpa~ 0.7Mpa

  Chemical liquid Adding

  Automatic

   Power Supply

  3Phase 380V 50/60HZ

  Net Weight

  400Kg

  Exhaust Size

  Φ100mm(W)×30mm(H)

   Machine Size

  L1200 × W1100 × H1830(mm)

Offline PCBA Cleaner AQ-650 Cleaning process :

  AQ-650 Process Diagram (preparation):

AQ-650 Process Diagram (preparation):

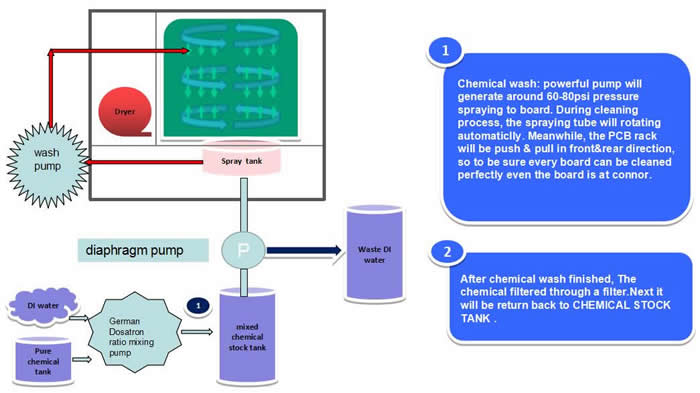

  AQ-650 Process Diagram (chemical cleaning):
