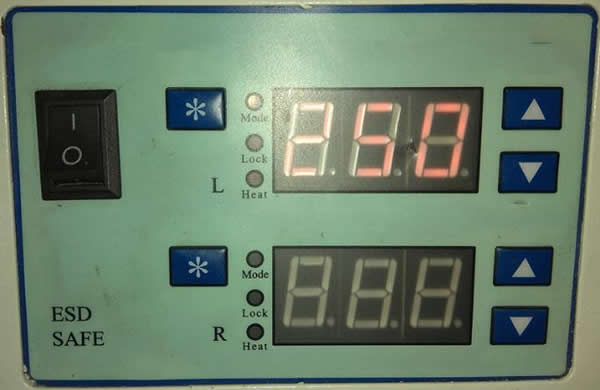

●   Contacted heating system with 150W, it has rapid temperature recovery time.The soldering temperature can be displayed in real time. When the temperature control detects a slight change of the temperature on the soldering tip, it will quickly make a temperature compensation action.Also the temperature can be controlled by PC.

●   Direct heating method , temperature sensor is closed to the tip of the soldering tip which can detect the minor change and control the temperature precisely.heating speed is very fast.With the rotation axis,iron components can rotate 360 degrees. fully meet the differeent angle of soldering products.

●   Various soldering tips can meet different process requirement. customized solering tips is also available according to the product. The machine has the function of shaking solder, artificial manual soldering,It can make the soldering process more quickly.

●   Teaching panel make  programming become easy.

●   Cleaning tin by air which can fully clean soldering tip and improve soldering quality.

●   Precision fixture holder on the machine ：Can provide precise positioning for fixtures.

●   Customerized fixture according to customer's requirement (optional).

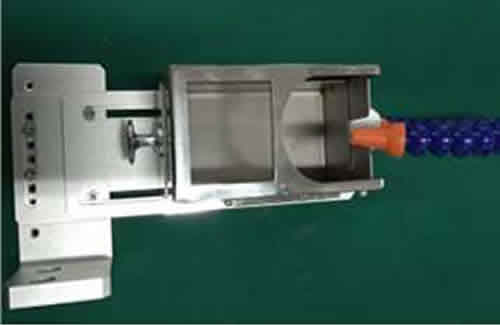

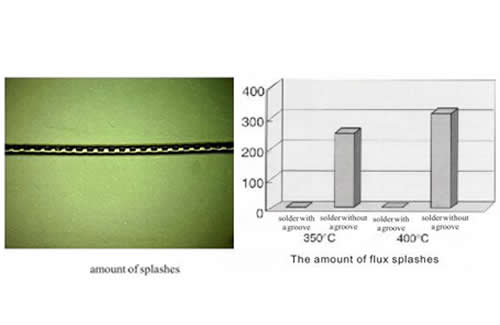

●   Optional Broke tin solder wire feeder(for the tin diameter of 0.6-1.0mm ):Break tin solder wire feeding system can pierce holes when feeding solder wire ,it can reduce  burst tin  that causes flux remaining on PCB when soldering under high temperature to improve the soldering quality .solder wire feeding accuracy can reach 0.1mm,equipped with Lack tin and block tin automatic check function.

●   Broken tin wire.

●   Optional preatheating platform: When soldering the products with high heat absorption, the product can be fully preheated to ensure the soldering effect. It can improve the soldering quality, and make the soldering points more full. Increase the fluidity of the tin, for better performance of the tin through the hole.

●   Accurate temperature control to make temperature compensation, temperature recover  less than 1 second after the temperature drop.

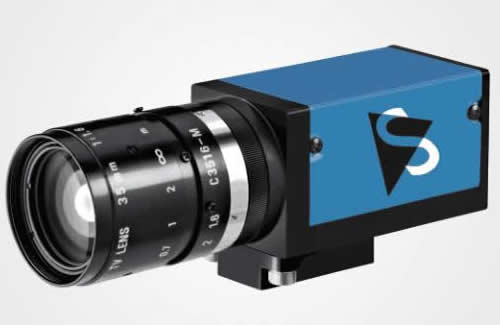

●   Optional CCD : Adopts German Imagining industrial camera. Any height positioning technology of CCD, when the CCD photographing height changes, the system will automatically calculate the relationship between pixels and distance, to adapt to a variety of product needs.CCD adopts anti-smoking treatment technology .Usually the machine will produce a large amount of smoke during the soldering process. The flux in the smoke will stick to the lens surface of the CCD. We have added an anti-smoking treatment device in front of the CCD.

●   Optional N2 soldering : The N2  (Nitrogen gas) soldering device can be matched. Adopt nitrogen soldering can change the wettability and expandability of the solder. It can reduce the generation of solder balls, reduce open circuit and solder bridging, and can reduce the oxidation phenomenon in the soldering process, improve the soldering quality, and make the soldering points more full, better performance of the tin through the hole.

●   Micro switch soldering.

●   USB soldering.

●   High heat soldering point(connector) .

●   Fine pitch soldering point.

●   Motor soldering.
