Lead Free Reflow Oven Industrial PC control system Automatic lubricating design by pressure pump Flux Recovery System Independent cooling system
| Heating Module: Good air circulation better temperature uniformity high heat efficiency |
|
Maintenance: Replace the high temperature motor, air wheel and heating pipe independently Flexibility: Heat pipe can be changed to different power |
| Heating module design, easy for maintenance and cleaning. Front & rear air circulation , ensure the accuracy and stability of temperature & air speed. |
| one cooling zone (add one more cooling zone is option) |
| The structure design of the new type cooling drawer makes the big part exhaustgas filter more thorough maintenance is more convenient |
| The rails is using special aluminum alloy and doing hardness and oxidation treatment for anti-distortion and anti-wear The rails is adopting two section structure design to enhance the bending resistance of the rail, anti distortion Special width adjustment and conveyor structure design to ensure PCB conveying stable and reliable.
|
| Manual (for emergency) + electrical width adjustment structure design PCB Equipped with emergency manual conveyor structure to prevent PCB burned when the power is off. |
| Emergency manual width adjustment Emergency manual transport |
| Automatic lubricating design by pressure pump |

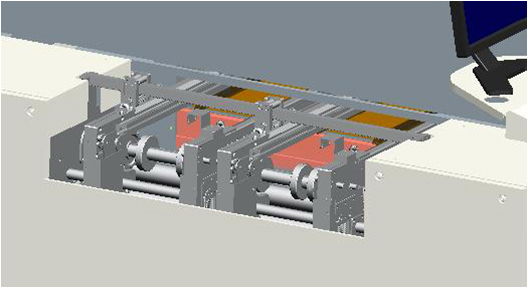

| Guide rail + central support transmission without mesh belt |
| Dual transmission |
| 9“large wind wheelHigh power hot air motor 250W High efficiency heating pipe Air flow chart |
| Cooling System： Fulfill lead-free welding quick-cooling requirement Prevent the components and PCB deform Convenience and easy to maintenance. Inter-changeable between air cooling and water cooling system |
| Flux Recovery system Module: No need to turn off the machine to maintain ( on-line maintenance) Modular design for cleaning and maintenance (Remove without tooling) Multi-level flux filtering to ensure high-activity processing ( environmental friendly) |
| Electric: PC+ PLC control to ensure the equipment running stable Software: Windows operation interface, support 2000/XP/win7 operation system Support language switching between English & Traditional/Simplified Chinese User Friendly interface Perfect temperature profile analysis, storage and invoking function Different level of password , operating records Real time display the running parameters Built-in welding defect analysis manual Built-in maintenance manual |
| Air cooling (10 zones) |
Lead Free Reflow Oven SF Series Options:
Nitrogen control system Nitrogen Consumption：≤35m3/hour Min Oxygen concentration: ≤700 PPM |
 |
 |
 |
Lead Free Reflow Oven SF Series Specification | |||
Model | SF-8E | SF-10E | SF-12E |
Dimension | L5040*W1430*H1450 | L5750*W1430*H1450 | L6460*W1430*H1450 |
Net weight | about 2500Kg | about 3000Kg | about 3500Kg |
General power | 59KW | 73KW | 89KW |
Power consumption | Approx.7.5KW | Approx.9.5KW | Approx.11KW |
Power Supply | 3PH 380V 50HZ | ||
Controlling type | SIEMENTS PC + PLC controlling | ||
Transport Width | 50-440 | ||
Component Height | +30mm/ -20mm | ||
Tunnel Length | 2900mm | 3600mm | 4300mm |
Heating Zone | 8 temp zones 16 heating modules | 10 temp zones 20 heating modules | 12 temp zones 24 heating modules |
Flux Recovery | Standard | ||
Cooling Type | Upper 1+ Bottom 1 cooling zone (Air Blower Motor), length is 900mm (add one more cooling zone is option) | ||
SF Lead Free Reflow Oven Machine - Specification | |||
Model | SF-8N | SF-10N | SF-12EN |
Dimension | L5040*W1430*H1450 | L5750*W1430*H1450 | L6460*W1430*H1450 |
Net weight | about 2500Kg | about 3000Kg | about 3500Kg |
General power | 59KW | 73KW | 89KW |
Power consumption | Approx.7.5KW | Approx.9.5KW | Approx.11KW |
Power Supply | 3PH 380V 50HZ | ||
Controlling type | SIEMENTS PC + PLC controlling | ||
Transport Width | 50-440 | ||
Component Height | +30mm/ -20mm | ||
Tunnel Length | 2900mm | 3600mm | 4300mm |
Heating Zone | 8 temp zones 16 heating modules | 10 temp zones 20 heating modules | 12 temp zones 24 heating modules |
Flux Recovery | Standard | ||
Cooling Type | Upper 2+ Bottom 2 cooling zone (cooling water) (Standard) Length: 900mm | ||
Lead Free Reflow Oven SF Series included:
Lead Free Reflow Oven RR Series Includes |
● Lead Free Reflow Oven |
● Industrial PC control system |
● Automatic lubricating design by pressure pump |
● Flux Recovery system |
● Cooling system |
● 1 year warranty |
● Free Accessories |
