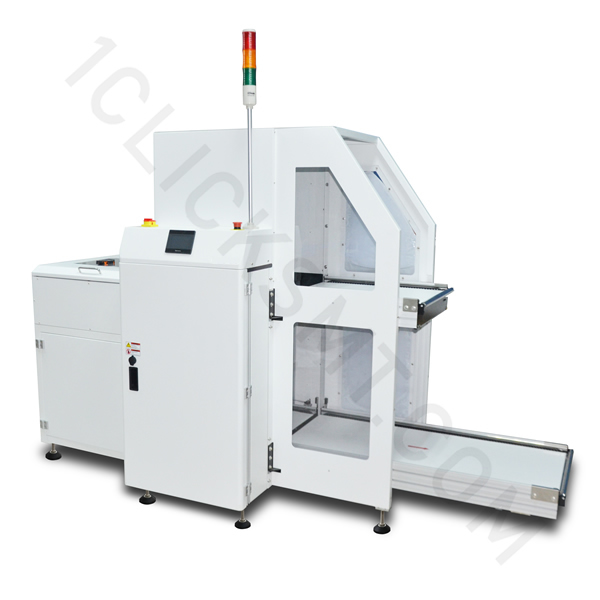

The unit provides automatic magazine change-over for continuous line unloading. PCB's are collected from an upstream pusher conveyor and pushed into the magazine. Full magazines are offl oaded at an ergonomic low level.
|
Shipping information About the World shipping,pls send e-mail to us at sales@1clicksmt sales@1clickmachine.com or call our professional sales engineer at +86-0769-85303739 On Skype: any questions,pls feel free to contact us by skype-oneclickmachine |
|
Multi Magazine Unloader Series Features
● Pannasonic PLC Program control. |
● Selectable pitch settings. |
● Towerlight display for machine status. |
● Automatic magazine change-over. |
● Flexible platform to suit standard magazines. |
● Conveyor width adjustment using hand crank. |
● Regulated pressure on attached pneumatic pusher. |
● Pusher position adjustable to centre of the magazine. |
● User friendly “soft touch” LED membrane control panel. |
● SMEMA compatible. |

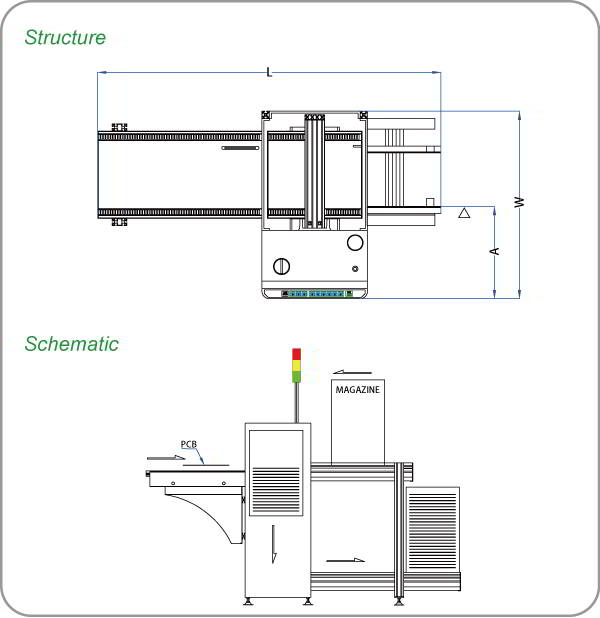

Multi Magazine Unloader Series Dimension
● Transport height: | 900mm +30 -10mm |
● Transfer direction: | Left to right |
● Operation side: | Front of the machine |
● Fixed rail: | Front of the machine |
● Interface: | SMEMA |
● Conveyer concept: | ESD belt (round or flat) |
● Belt speed: | 16m /min |
| ● PCB edge support: | 3mm |
● Power supply: | 230 VAC/50 Hz/1 Ph |
● Power consumption: | 350VA max. or specify |
● Air supply: | ≥6 bar |
● Air consumption: | 10 ltr/min max. |
● PCB unloading time: | ±6 seconds |
● Pitch distance: | 10.20.30.40mm pitch or specify |
● Magazine change-over time: | ± 30 seconds |
● Total number of magazines: | * 1 mgazine on the lifter platform * 1 empty magazine on the upper magazine conveyor * 2 full magazines on the lower magazine conveyor * or specify |
Model | ULDB250M | ULDB330L | ULDB390LL | ULDB460XL |
Machine Dimension (L x W x H) | 1930 x 760 x 1350 | 2400 x 840 x 1350 | 2660 x 909 x 1350 | 2660 x 979 x 1350 |
Weight | 160kg | 190kg | 230kg | 260kg |
PCB length | 50mm - 330mm | 50mm - 445mm | 50mm - 530mm | 50mm - 530mm |
PCB width | 50mm - 250mm | 50mm - 330mm | 50mm - 390mm | 50mm - 460mm |
PCB Thinckness | 0.6mm – 4.5mm | 0.6mm – 4.5mm | 0.6mm – 4.5mm | 0.6mm – 4.5mm |
Magazine Dimensions (max.) | 355 x 320 x563 | 460 x 400 x 563 | 535 x 460 x 570 | 535 x 530 x 570 |
Fixed rail to front dimension(A) | 364mm | 364mm | 364mm | 364mm |
* Customized is available
Multi Magazine Unloader Series Options
● Additional magazine capacity. |
● Touchscreen instead of button panel. |
● Enclosed construction improve level of safety. |
● Width adjustable magazine conveyor(s). |
● Other options available on request. |
