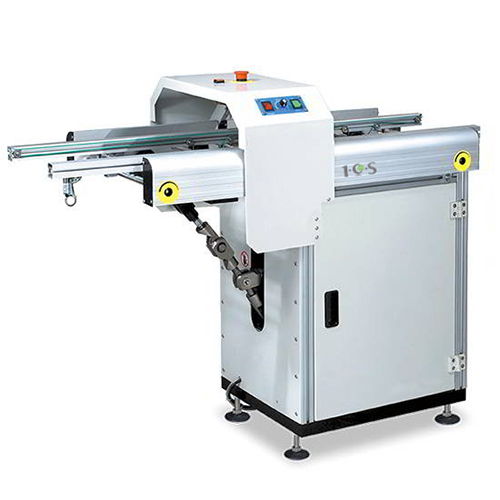

Lowering Gate Conveyor Series

Quick Overview
1Clicksmt PCB Handling Machines

This unit is used when a passage way is required in a production line.

Lowering Gate Conveyor Series Features

Pannasonic PLC Program control.

Locking cylinder to avoid opening during PCB transfer.

Ergonomic air pressure supported opening and closing.

Automatically gate lifting down by push button.

Smooth and parallel width adjustment.(lead screw)

SMEMA compatible.

Lowering Gate Conveyor Series Specifications

Transport height:

910mm ±30mm

Transfer direction:

Left to right

Operation side:

Front of the machine

Fixed rail:

Front of the machine

Interface:

SMEMA

Conveyer concept:

ESD flat belt

Belt speed:

0.5-20m/min adjustable

PCB edge support:

3mm

Components clearance:Bottom 30 mm or specify

Power supply:

230 VAC/50 Hz/1 Ph

Power consumption:

100VA max. or specify

Machine cycle time:

± 16 seconds

Passageway:

600mm or specify

Air supply:

4-6 bar

Air consumption:

35 ltr /lift max.

Load bearing:1.5kg/PCB

Lowering Gate Conveyor.png

 Model

 CYG330L

 CYG460XL

 Machine Dimension (L x W x H)

 1300 x 560 x 1250

 1300 x 720 x 1250

 Weight

 180kg

 230kg

 PCB length

 50mm - 445mm

 50mm – 530mm

 PCB width

 50mm - 330mm

 50mm – 460mm

 PCB Thinckness

 0.6mm – 4.5mm

 0.6mm – 4.5mm

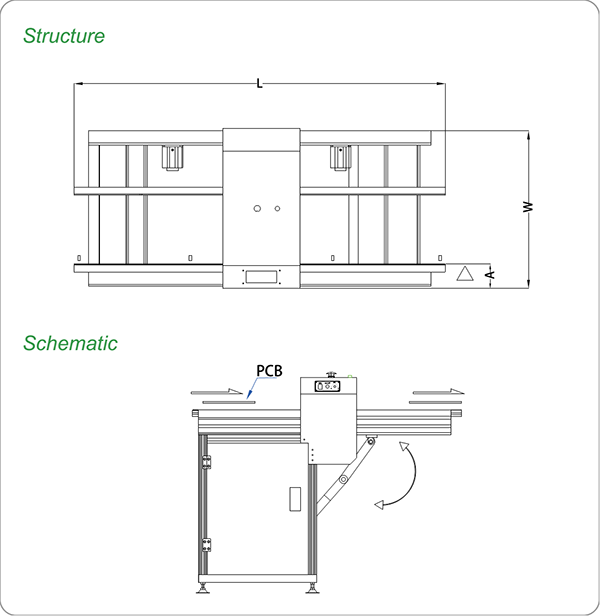

 Fixed rail to front dimension(A)

 86mm

 86mm

* Customized is available

Lowering Gate Conveyor Series Options

Electrical width adjustment.

Passageway length is customized

Other options available on request.
