IS-C2000 is a high-capacity fully automatic Intelligent stock that can automatically control the reel in and reel out, adopting the first in and first out principle to ensure timely use of materials. The IS-C2000 is mainly used to store 7-inch reels with a thickness≤12mm. The machine has a small footprint and high space utilization rate. The machine can be optionally connected to customer’s MES. Customers can use MES to control the reel in and reel out on the intellignet stock.
Intelligent Stock Dimensions: |
 |
| ● Advanced industrial design make machine looks very beatiful, solid structure and X/Z/L servo motor with it's motion control system ensure machine run smoothly and precisely. |

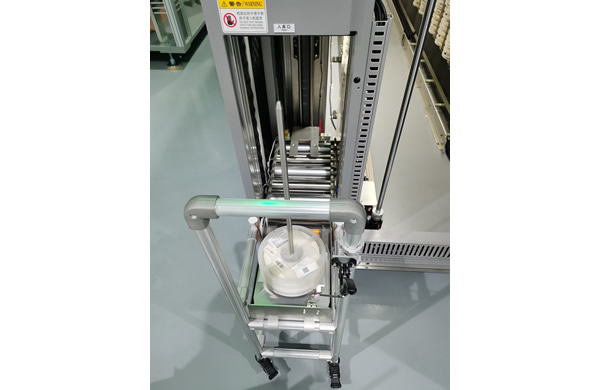

| ● This machine adopts automatic feeding system. Batch loading and unloading, a stack of reel, in turn automatically scan into the warehouse. |
| ● Industrial HIKROBOT vision system to distinguish characters on the reel QR code. |
| ● The mechanical gripper grabs the material reel and stores it nearby, and the speed of enter in and out the warehouse is about 8-16 seconds/reel. |
| ● Double sided storage, small footprint, large storage capacity. |
| ● Machine internal structure uses the stainless steel material, durable, the maintenance is convenient. |
| ● Full servo control, high precision. The various axes of the machine are controlled by servo motors and drivers to ensure smooth and high-precision movement of each axis. |
| ● Equipment Operation Process |
| ● The discharge ports of two IS-C2000 are connected together by conveyor. Can store 4000 pcs reels (Reel diameter: 7inch; Reel thickness less than 12mm) |
| ● The discharge ports of three IS-C2000 are connected together by conveyor. Can store 6000 pcs reels(Reel diameter:7inch;Reel thickness less than 12mm) |
| ● The discharge ports of four IS-C2000 are connected together by conveyor. Can store 8000 pcs reels (Reel diameter: 7inch; Reel thickness less than 12mm). |
| ● FIFO principle/first in and first out fast out of storage, conveyor belt fast out of storage. Multi-machine online delivery faster! One work order can be exported from multiple online devices. |
| ● The machine can be optionally connected to customer’s MES. |
| ● Self-developed software, fool-style programming on the machine. |
| ● WMS software(Optional): Warehouse management software is a web-based warehouse processing system (WMS) that provides professional, flexible, efficient, and accurate electronic material management functions. If the customer doesn’t have MES, they can purchase WMS software+server to independently use Intellignet tower. ● Warehouse management software can be customized to connects to customer’s ERP / MES production system, provides convenient fuzzy search function, rich management report, first-in first-out, end-of-day management, material optimal calculation and multi-warehouse classification, material distribution by station, continuous work order etc. |
| ● Display of the entire production process in the workshop after the integration of the intelligent tower/stock/shelf, WMS, and customer MES. |
Intelligent Stock Features |
● This machine adopts automatic feeding system. |
● Industrial vision system to distinguish characters on the reel QR code. |
● The mechanical gripper grabs the material tray and stores it nearby, and the speed of enter in and out the warehouse is about 8-16 seconds/reel. |
● FIFO principle is fast picking and placing.Adopting the first in and first out principle to ensure timely use of materials. |
● The machine has a small footprint and high space utilization rate. |
● Machine internal structure uses the stainless steel material, durable, the maintenance is convenient. |
● Machines can be customized according to different sizes of reels. |
● The machine can be optionally connected to customer’s MES. |
Intelligent Stock specification: | |
Model | IS-C2000 |
Axes | X/Z/L |
The number of reel stores | 2000 pcs reel (7’’/180mm) |
Reel thickness | ≤12mm |
Machine Dimension (mm) | 5141×1232×2,276mm |
Load and unload the reel | Batch loading and unloading, a stack of reel (Max: 40pcs Reel), in turn automatically scan into the warehouse |
| According to the work order out of the warehouse in turn | |
Out of storage, in storage speed | Average pick-and -place time, About 8-16s/reel (for reference only) |
Main function | Reel size: 7inch，reel thickness ≤12mm |
| Customized MES docking interface (Optional, Customize MES docking according to customer requirements) | |
Scanner | 1D/2D CODE, The reading field is around 300 * 400mm (Note: All QR codes need to be the only encoding principle) |
Temperature, humidity | Temperature and humidity display |
Scanner | Power: 1PH AC200-230V 50/60HZ Max: 2.7KW Air: 0.5Mpa Air Consumption: 100L/min |
Intelligent Reel Tower Optional Configuration: |
● WMS software |
● Server |
● Manual Printer |
● Label |
● Ribbon |
● Fully automatic labeling machine RLM2002 |
● X-ray SMD component counter |
● Customized MES docking with customer |
