The Imaging Source 5 Mpixels CMOS Camera
Accurate positioning technology
High stability granite platform
Automatic PCB clamping
| Three-channel light source system Three-channel light source system is specially designed for PCBA inspection. Professional optic architecture design ensures the evenness of light distribution within each FOV, which reduces the false call rate significantly while ensure to catch the defects. |
| High stability granite platform Using granite as the basic platform, greatly improve the stability and mechanical accuracy of equipment, and ensure the precise inspection of defects. |
| Automatic clamp Through equipment link mechanism, realize automatic clamp PCB board. |
| Inspection on 01005（Option) and fine pitch IC Z-430 adopt the highest resolution of 10μ, equipped with high definition industrial camera, which guarantee the inspection on 01005/03015 and fine pitch IC. Base on the precise positioning per solder pad and per component body , Z-430 can search out tiny solder pad for 01005/03015 and IC, find out the end of IC lead precisely, this can ignore the influence due to any changes on the length of incoming IC lead. |
| After the program test, there are more than 3 detection points for false reporting of insufficient. Batched study can be adopted to debug the program conveniently and quickly. |
Z-430 Features |
● For post-flow and post wave soldering offline inspection. |
● 10um high resolution for 01005chip & 0.3pitch IC. |
● Feature analysis algorithm logic functions for solder joint inspection. |
● Stable granite platform. |
● High precision X/Y servo motor with ball screw and linear rail. |
● Powerful SPC data analysis function, including defect report, fasle call statistic analysis, production process quality monitoring. |

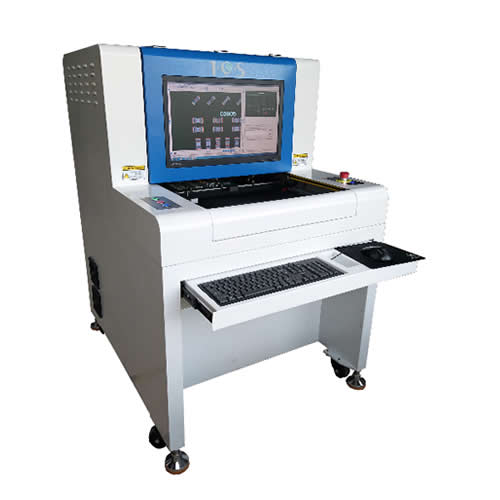

Z-430 Offline Automated Optics Inspection Machine | ||
| Model | Z-430 | |
| Image System | Camera | The Imaging Source 5 Mpixels CMOS Camera |
Resolution(FOV inspection size) | Optional： 25µm/Pixel FOV : 40.70mm X30.90mm Inspection Speed＜270ms/FOV | |
| Standard： 20µm/Pixel FOV :32.56mm×24.72mm Inspection Speed＜260ms/FOV | ||
| Optional： 15µm/Pixel FOV : 24.42mm X18.54mm Inspection Speed＜240ms/FOV | ||
| Optional： 10µm/Pixel FOV : 16.28mm X12.36mm Inspection Speed＜220ms/FOV | ||
Lens | Lens Tele-centriclens | |
Lighting | RRGB coaxial ring tower LED light source | |
| Motion System | X/Y Movement | AC Servo |
Platform | Granite , Hiwin ball screw and linear rail. | |
Width Adjustment | Manual adjustment,automatic PCB clamping | |
| Hardware | Operation System | Windows 7 |
Power Supply | 1ph 200-240V，50/60Hz，5A | |
Air Supply | 0.4-0.6Mpa | |
Machine Size | 1070×900×1310mm (L×W×H) | |
Weight | 510kg | |
| PCB Size | Size | 50*50-430*330mm |
Thickness | ≤5.0mm | |
PCB Weight | 3kg | |
Clearance | Top/Bottom：30/60mm | |
Clamping Edge | 3.5mm | |
| Inspection Catagories | Paste | Bridge,Misalignment,Insufficient/Extrasolder,Foreignmaterial |
Component | Wrongcomponent,Missing,Polarity,Misalignment,Billboard,Reversed,Tombstone,Damaged,IC lead bent,Foreign material | |
Post Reflow | Solderjoint：No solder,Insufficient/Extra solder,Bridge,False welding,Solder ball | |
Wave Soldering | Insert pin,No solder,Insufficient/Extrasolder,Hole,False welding,Solderball | |
Inspection Component | Chip:03015 and above LSI:0.3mm pitch and above Others:Odd shape component | |
Standard configuration | |
1. Z-430 Automated Optics Inspection Machine. | |
2. Offline programming software dongle key. | |
3. SPC software dongle key (combined with AOI machine ) | |
4. Color Calibration plate. | |
Optional configuration: | |
1. Offline programming software |
|
2. Offline programming PC |
|
3. UPS power |
|
4.Manual Barcode scanning gun |
|
