Lead free wave solder machine
Spraying system driven by step motor and PLC controller
1 individual bottom preheating zones
Titanium alloy dual wave solder pot
Titanium alloy finger conveying system.
Colored touch screen panel
Machine dimension: 2280(L)*1150(W)*1550(H)
Machine weight : 800KGS
1 year warranty
| |

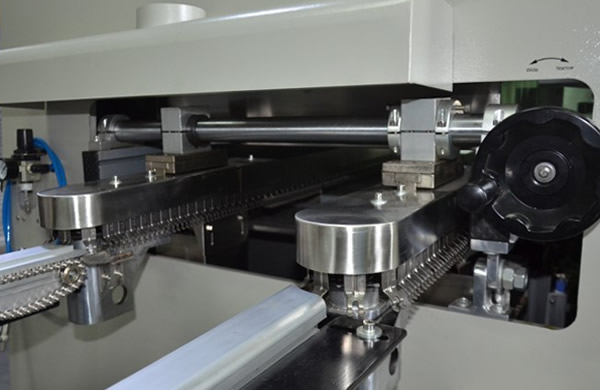

| ● In-loading system: which can connect with the insertion conveyor directly, the sensor at bottom for counting and spray fluxer on/off; with ruler and needle for instruction of width. |

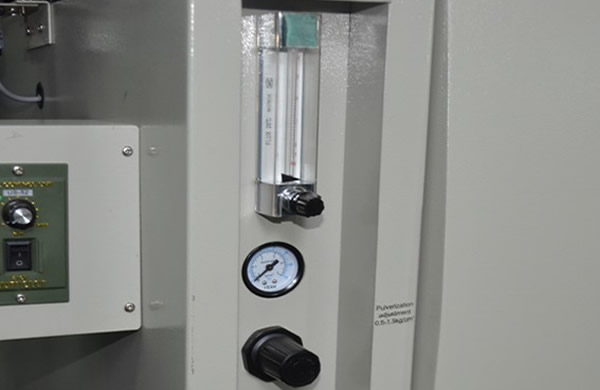

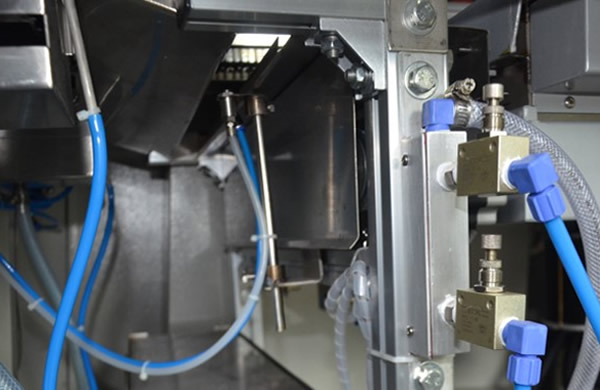

| ● Air supply to spray flux system, all the air flow pressure is adjustable by flow meter. |
| ● The high quality sprayer driven by stepper motor and rail / slider, moving speed set on touchscreen, stepper driver and PLC control system make a smooth and low noisy movement. Compare with traditional air cylinder drive, the moving speed can be set in touchscreen and moving speed will not be influented by air pressure like air cylinder. |

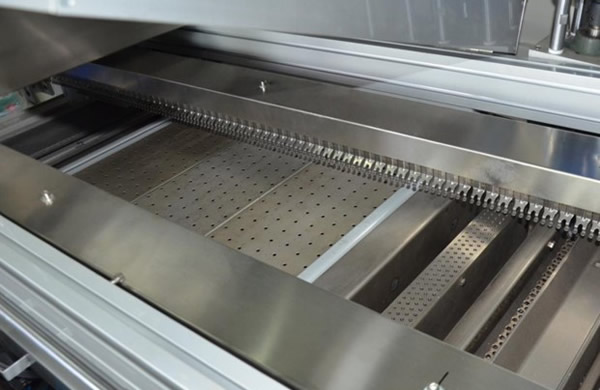

| ● 1 individual bottom preheating zone, the heaters can be drawn out at rear of machine, the blowers can be drawn out at bottom of preheat, easy for maintenance. |

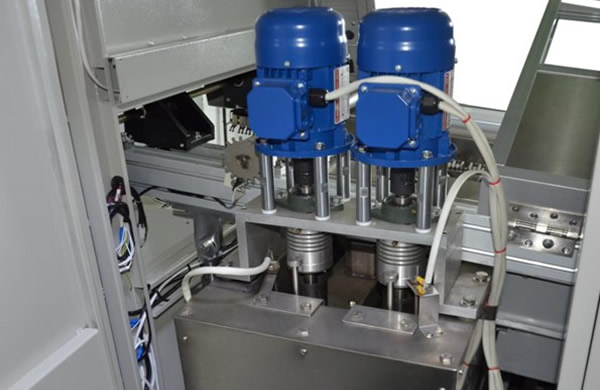

 | ● Titanium solder pot made by 3mm thickness pure titanium material. with the quick connector for solder pot, it's easy for swap between leaded and lead-free. Italy wave motor will keep the wave stable and long lifetime. |

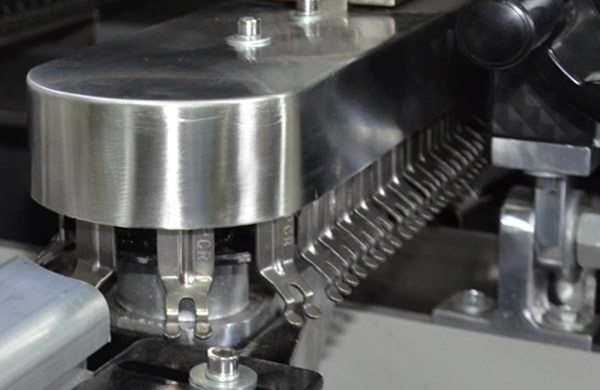

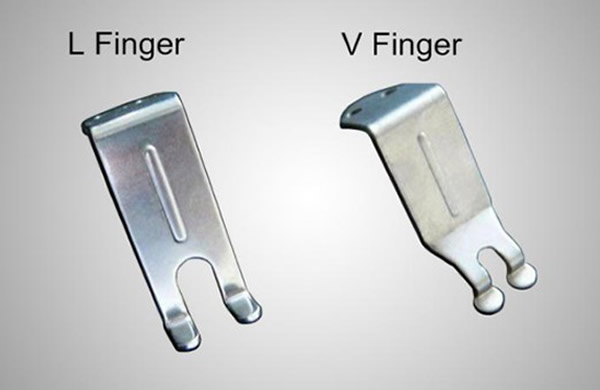

 | ● Titanium fingers. In this machine the same conveyor rail can accommodate for both V and L fingers, customer can choose any of them or mixed them. |
| ● Dual Wave Nozzle ● Fully Titanium Solder Pot and Wave Nozzle ● Adjustable Wave Height by Touchscreen ● Adjustable Wave Width ● Reduce Oxidation Design |

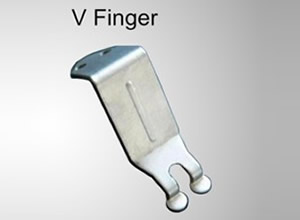

| ● Standard: V type Ti finger for standard conveyor. |
| ● Option: V type Ti finger or V mixed with L finger. |

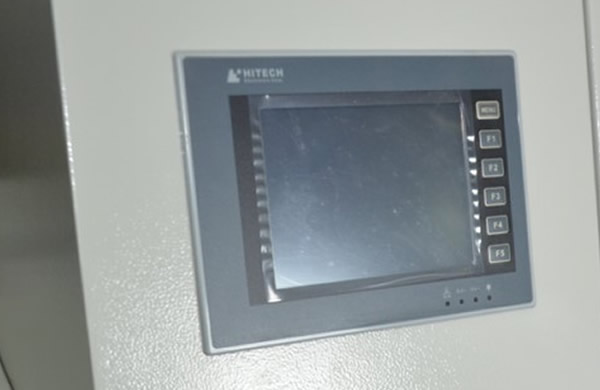

| ● Touchscreen and PLC for controlling system ● English interface |

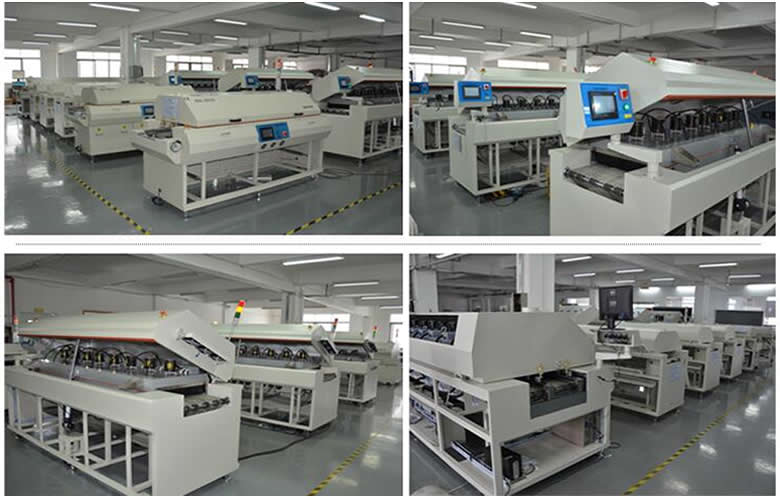

Our Factory Pictures： | |
 | |

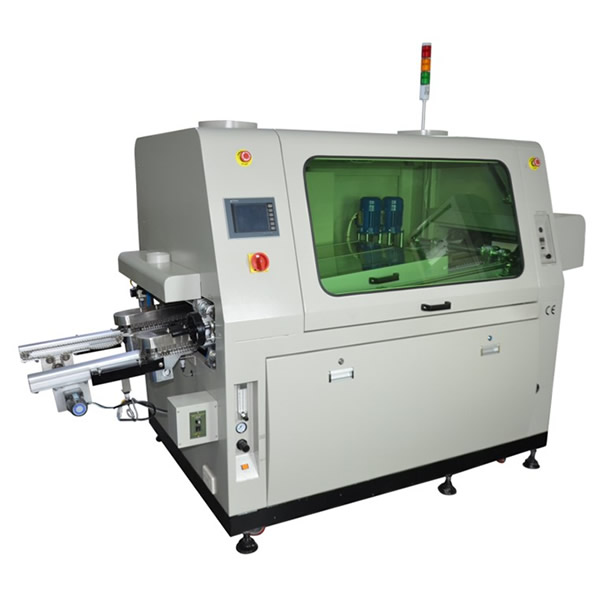

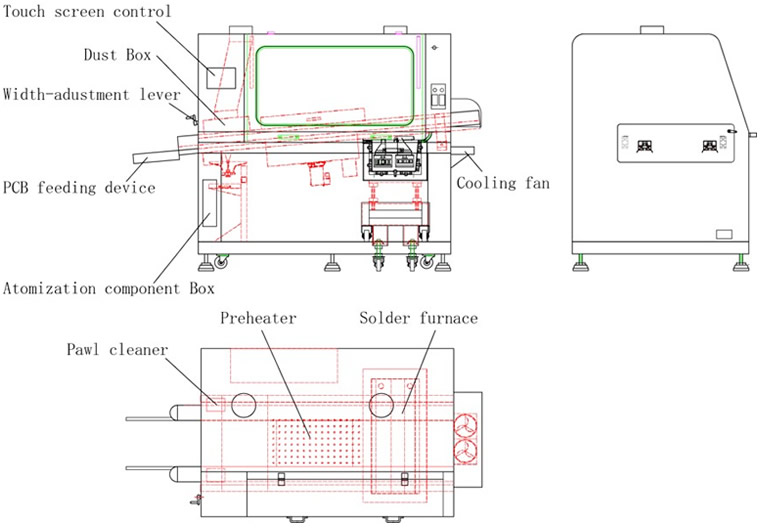

Legend350 Lead Free Wave Solder Machine Features: |
● Streamline appearance design, spacious glass sliding door, easy to observe and maintain; harmonious color, people-centered design concept. |
● Touch screen, easy to operate. |
● The flux is atomized by the imported spray gun, and the reciprocating mode is stepper motor. The speed is stable, the atomization is uniform and the positioning is accurate. |
● Automatic spray tracking system, spray area and time automatically adjust with the size of PCB, and has the function of automatic cleaning spray gun. |
● The preheater adopts independent heating modular design, with sufficient preheating space, efficient thermal compensation and sufficient and uniform preheating. |
● The tin furnace system adopts external heating mode, close wave crest design, adjustable nozzle angle, and optional standard and energy-saving operation mode. Solder oxide less, and can automatically collect, easy to clean. |
● The tin furnace is environmental protection, energy saving, high efficiency and stable temperature. |
● The wave crest adopts frequency conversion control technology, highly independent control, simple operation and digital display. |
● The date and time can be set according to the operation needs for automatic startup and shutdown. |
| ● With PCB automatic counting function, convenient for production management. |
| ● It is equipped with sound and light alarm, text prompt and emergency stop function. |
| ● PLC and touchscreen controlling system. |
| ● Solder pot is made of titanium material, 100% capable for the lead-free solder. |
| ● Customer can choose "L" finger for pallet, or dual hook finger for pcb. |
Legend350 Specification： | |
Model | Legend350 |
PCB width | 50-350MM |
Dimension | 2280(L)*1150(W)*1550(H) |
Net weight | 800KG (Without Solder) |
Running power/general power | 7-8KW/18KW |
Controlling system | Touchscreen + PLC |
Conveyor Finger | Fully Titanium |
Conveyor speed | 500mm-2200mm/Min |
PCB Conveyor direction | Left to Right |
Spray method | Stepper motor drive , Linear rail and slider moving sprayer |
Sprayer | Stainless Steel Nozzle |
Preheating zone | 1 individual bottom preheating zone |
Preheating power | 8.4kw |
Length of preheating zone tunnel | 600mm |
Solder pot material | Fully Titanium |
Wave number | Dual Waves |
Melting time | 60 minutes |
Solder pot lift up&down | Manual |
Solder pot in&out | Manual |
Max. wave height | 8mm |
Top Clearance | 40mm |
Solder pot heating-up time | 80 mins |
Solder pot lift | manually |
Solder pot in and out | manually |
Solder pin length | Max. 10mm |
Solder pot temperature | Room temperature to 300℃ |
Solder pot motor | 0.18KW x 2 /220V 3Phase/ inverting speed adjustment |
Solder pot elevating motor | 90W/220V |
Solder pot In/Out motor | 40W/220V |
Solder pot heater | 1.4KW x 6 (external placement) |
Cleaning pump | 12W/220V |
Solder pot capacity | 200KG |
Cooling Fan | 6″x2 |
Legend350 Lead Free Wave Solder Machine Includes: |
● Lead free wave solder machine |
● Spraying system driven by step motor and PLC controller |
● 1 individual bottom preheating zones |
● Titanium alloy dual wave solder pot |
● Titanium alloy finger conveying system. |
● Colored touch screen panel |
● Machine dimension: 2280(L)*1150(W)*1550(H) |
● Machine weight : 800KGS |
● 1 year warranty |
