GR300S is an automated desktop type dispensing robot which offers long -term operational reliability and consistent repeatability for precise adhesive, sealant and solder paste applications.
GR300S Single head dispensing system Features
● Functions of continuous input program with drawing points, lines, polygons, arcs, circles and irregular curves. |
● The amount, size and thickness of plastic, gluing speed, dispensing time and stop time can be set by parameter with a stable glue quantity without missed glue. |
● Adopting stepper motor as X, Y, Z -axis movement power source. |
● According to customer products, multiple dispensing needles are available and it can be connected with a variety of glue gun and glue storage barrel. |
● One product can be dispensed with a variety of plastic once for all.Glue guns, tray and automatic heating system (optional) |
● Glue guns, tray and automatic heating system (optional). |
● According to your needs of dispensing process, design the most suitable models. |
GR300S - Specifications | |
Model | GR-300S |
Dispensing Movement | X 300mm Y 300mm Z 80mm |
Maximum Speed | 500mm/sec |
Mechanical Precision | ±0.05 |
Repeat Accuracy | ±0.05 |
Operation System | Teaching pendant + Control card |
Drive sysytem | Micro-stepping motor |
File Capacity | 2G memory ≤8000 programs |
Power supply | AC220V 50-60Hz 0.75KW |
Dry compressed air required | ＞0.6 Mpa |
Machine Size | L550 x W640 x H660mm |
Weight | Approximately 50kg |
Software | Gluego dispensing software |

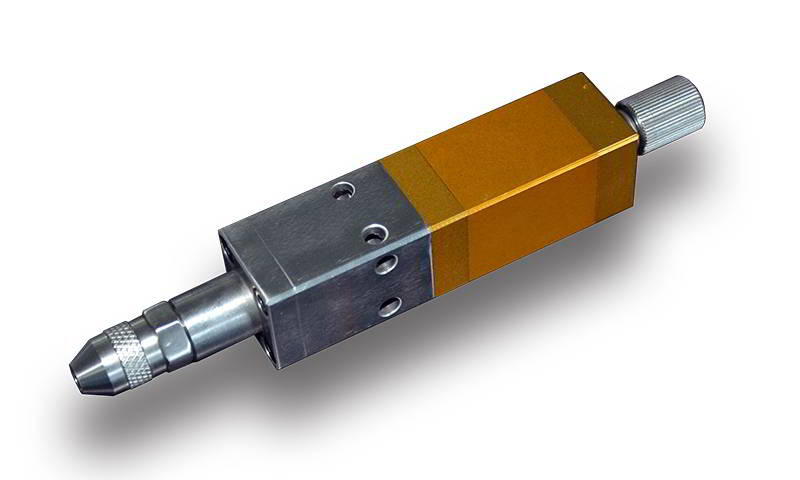

| Adjustable precision valve GR-H2222
| ||||||||||||||||
| Micrometer high precision valve GR-D2121 Plunger structure ,flow rate can be ajusted precisely by micrometer ,small size and corrosion -resistant,it is suitable for UV glue ,grease, paint ,oil etc .low viscosity ,and good fluidity glue.
| ||||||||||||||||
| GR-600J Suck-Back Valve The GR-600J Suck-Back Valve is designed to prevent extra protection against post-dispense dripping when dispensing low- to medium viscosity liquids.
| ||||||||||||||||
| AB Glue Mixing Valve GR-800J The AB glue mixing valve GR-800J is deal for AB glue syringe , adopt pneumatic component, syringe can be installed quickly , simple mechanism and easy maintenace.
| ||||||||||||||||
