Product characteristics
High Precision Machining Platform(single platform)
High precision linear motor and marble platform to achieve high precision machining requirements
Software systems
A professional laser cutting sub-board software system, simple and easy to learn;
Visual systems
High performance CCD can realize automatic positioning and cutting;
Optical systems
High-quality laser generator and optical system to ensure that the machine is stable working time; all-optical protection makes the operation process very safe;
| Imported ultraviolet laser has the advantages of small focus spot, fine marking, small thermal effect and more beautiful marking effect. At the same time, the series of lasers adopt intracavity frequency doubling technology to greatly improve the stability of the laser. |
| Imported digital high-speed scanning vibroscope, small volume, fast speed, good stability. |
| Linear motor + marble platform to ensure high speed running of machine, high precision cutting effect. |
High Precision Laser Cutting System DZ-MS0404 specification: | |
Model | DZ-MS0404 |
Laser type | UV laser, 15 W |
power supply | AC220±10 %, 50/60 HZ, 1P |
Working area | 400*400 mm |
Focus spot diameter | <20μm |
Machining Precision | ±20μm |
X /Y Working Platform | Linear motor |
Base | High precision marble |
working environment | Temperature: 15~30°C; Relative humidity: 5~85%, no condensate, no dust or ash Less dust |
Cooling mode | Water cooling |
supports graphic format | DXF etc |
Dimensions (length * width * height) | About 1600*1200*1660mm |
High Precision Laser Cutting System DZ-MS0404 Product configuration | ||||||
| Serial number | Project | Configuration | Specifications | Quantity | Remarks | |
| Host | 1 | Laser | ● | 15 W(UV) | 1 | |
| 2 | Mirror | ● | High speed | 1 | ||
| 3 | Field mirror | ● | Far Field Mirror | 1 | ||
| 4 | Machine | ● | marble platform + linear motor | 1 | ||
| 5 | Computer | ● | IPC | 1 | ||
| 7 | Control Board | ● | Self-developed | 1 | ||
| 8 | Camera system | ● | / | 1 | ||
| 9 | Chiller | ● | / | 1 | ||

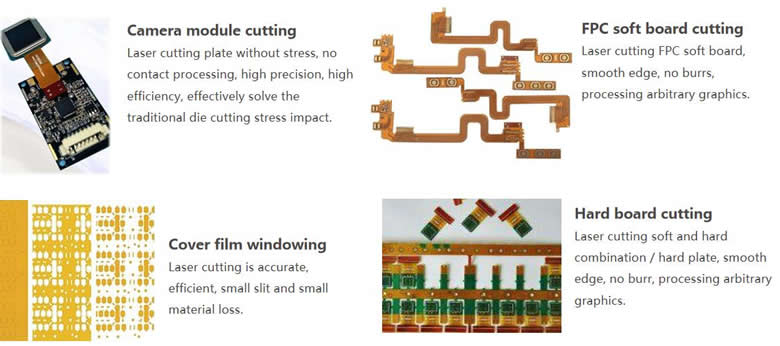

| High Precision Laser Cutting System DZ-MS0404 Application |
 |
| Sample: 0.3mm thickness |
 |
| Sample: 0.6mm thickness |
 |
| Sample: |
 |
| Sample: FPC |
 |

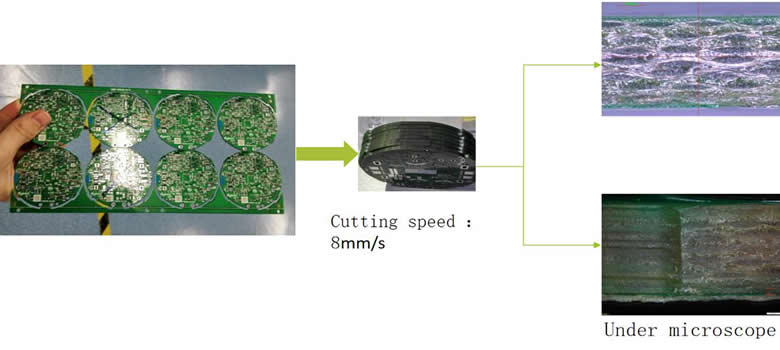

| FR4 board, 1.2mm thickness |
 |
