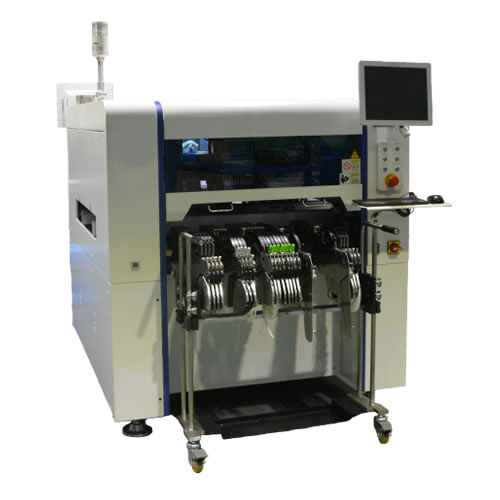

Advanced Flexible Mounter CM-S82 Quick Overview:
CM-S82 Adopt double driven linear motor and the motion centering technique of Gigabit six stage camera, the efficiency of mounting and accuracy is greatly improved, and the bus control technology with the modular cabling makes machine running fast and stably .
|
Shipping information About the World shipping,pls send e-mail to us at sales@1clicksmt sales@1clickmachine.com or call our professional sales engineer at +86-0769-85303739 On Skype: any questions,pls feel free to contact us by skype-oneclickmachine |
|
Advanced High Speed Flexible Mounter CM-S82 | |
| Realizes Placement Speed of 20,000 CPH | |
Realizes the highest placement speed of 20000 CPH with 6 spindles as well as optimized pickup/placement motion. | |
| Placement accuracy correction system | |
Chip ±50μm(Cpk ≥1.0) The newly upgraded placement accuracy calibration system automatically checks and corrects the pickup point offset, head offset, C/V offset, etc. to allow reliable part placement |  |
| Reinforced Applicability to Parts and PCBs | |
● Applicable to parts from 0201 to □35mm(H15mm) parts ● Applicable to Max. 450(L) x 400(W) PCBs | |
| Electrically Driven High Speed and High Precision Feeder | |
● Equipped with a function to automatically align the pickup position between feeders to improve the simultaneous pickup rate. ● Able to set various part supply speeds to improve the stability of part supply. ● Automatic feeding pitch recognition function ※_x0007_ Compatible with pneumatic feeders. |  |
| Easy-operated Software | |
| |
Advanced Flexible Mounter CM-S82 | |
Machine model | CM-S82 |
Vision system | Standard Equipped with : Fiducial Camera (300,000 pixel)* 2 pcs. |
| Stage vision :Fixed Big component camera(1 million pixel) * 1pcs , Fixed small component camera(300,000 pixel) * 6pcs. | |
Number of Spindles | 1 head *6 spindles |
Driving method | Y axis with double linear motor , X with servo motor ,Z axis with step motor |
Mounting speed | 20000 CPH（Real mounting speed :14500 UPH） |
Component range | 0201˜□35mm SOP.QFP（H12mm） |
PCB | Min.50(w)*50(L)mm |
| Standard：400(W)*450(L)mm | |
| Thickness0.38-4.8mm | |
Conveyor | Only Left to right , 900+/-20mm |
Feeder station | 96pcs*8mm feeder station |
Placement accuracy | ±50µm@µ+3σ/chip,±30µm@µ+3σ/QFP （based on standard chips） |
Power supply/air pressure | AC 220V /50HZ, 0.5~0.7Mpa |
Power | 3.8KW |
Machine weight | 1800KG |

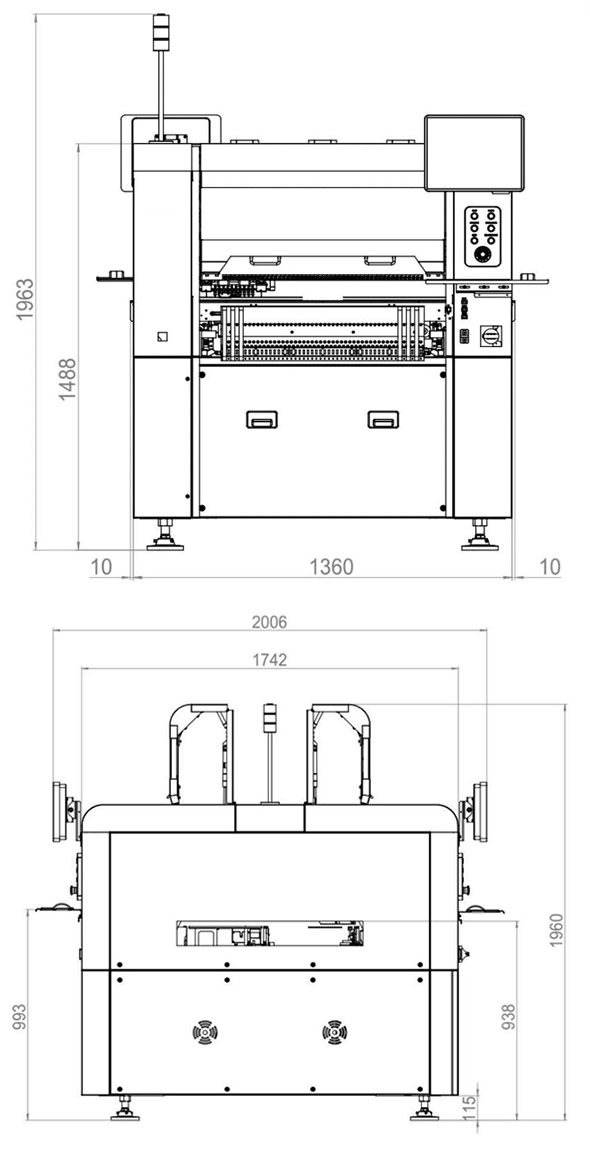

Machine size | 1360(L)*1742(W)*1488(H)mm |
