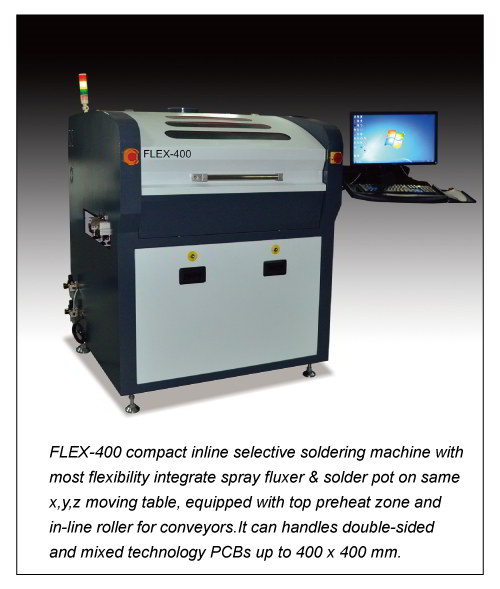

The FLEX-400 compact inline selective soldering machine with most flexibility integrate spray fluxer & solder pot on same x,y,z moving table, equipped with top preheat zone and in-line roller for conveyors.  With industrial PC,servo control system and smart software based on English Window 7 system, it’s a best choice for customer looking for flexibility .

PCB  be moved into machine with conveying system,  it will be stopped by stopper and  clamped by side clamper cylinder, optional Fidicious camera will check two mark points, then XYZ table will move fluxer to do spray flux to programmed path, after that same XYZ table will move solder pot to do selective soldering for programmed path. During whole process, the top preheater can be on to help keep the PCB's temperature.The FLEX-400 compact inline selective soldering machine handles double-sided and mixed technology PCBs up to 400 x 400 mm or specify.

Self designed cast aluminiim platfom ,with light weight than competitors, but better strongless. X/Y/Z axis are equipped with HIWINTaiwan high-precision ball screws and linear guide rails,  increasing the work accuracy up to  + / - 0.05 mm,Machine motion by panasonic Servo driving system,more stable and reliable.Roller conveyor runs smooth , with clamping device can make the edge clearance of PCB reach 3 mm and ensure positioning accuracy .With side clamping system, when PCB arrive position, side clamping air cylinder will clamp the board. So to keep a good repeatbility.

Adopt Japan made flux sprayer with quality atomazation effect , it is suitable for various flux. For any flux with low or high solid content. Pressure flux tank with digital pressure gauge which can be monitored by software to provide stable fluxing performance and The pressure flux tank with digital pressure gauge which can be monitored by software to provide stable fluxing performance.Optional with REA drop jet flux valve which made in Germany . Opt for flux with solid content lower than 5%.

Standard equipped with top preheater. The position of two group heaters can be adjusted manually.  Also when PCB is small width less than 200mm, it's able to switch one group of heater, so to save energy. Preheating time & heating ratio (%) can be set in software Solder tank is made of Ti material，and N2 direct heat up system, with close loop temperature control for N2. Meanwhile, with N2 pressure & flow monitoring in software. For many machines in the market, the N2 temperature is not controllable.

Improved mechanical pump design, compare with other mechanical pump required clean solder bath every weekly ( 5days x 8hours/day = 40 hours) , our pump need to clean solder bath every month (5 days x 8 hours/day x 5 = 200 hours). It's 5 times than our competitors.

Flex-400 's easy operation software Combined many years selective soldering machine's using experience, we developed this software with an USA company which had a big professional software team in India. It can edit moving path base on PCB's picture or Gerber file.  It can draw dot or line. Motion start & stop position, soldering speed, empty moving speed, different Z height, different wave height, wave stop speed etc, all these parameters can be set in program. At the production page, it will show in-time working position, fidicious camera, soldering process, and main parameters. For soldering process and can take pictures or video from PC and stock.

Strong SPC function. It can stock all the information for the PCB, include PCB's brief explanation, flux type, fluxing nozzle, solder type, solder nozzle, fluxing path, soldering path & wave height, solder temperature, IR setting etc. Key parameter like temperature, speed, air pressure, air flow, N2 pressure & N2 flow are all monitored.Optional function with auto wave height calibration. Engineer can set after how many boards to auto check the wave height once and Toshiba camera for Fidicious point check, engineer can set after how many boards to auto check fidicious mark point once.

We can offer on-site installation and training on the Flex-400,All parts with 1 year warranty and unlimited factory support.
