All Products In Category:   Valves

Valves

Quick Overview

Plunger structure ,flow rate can be ajusted precisely by micrometer ,small size and corrosion -resistant,it is suitable for UV glue ,paint ,oil etc .low viscosity, and good fluidity glue.

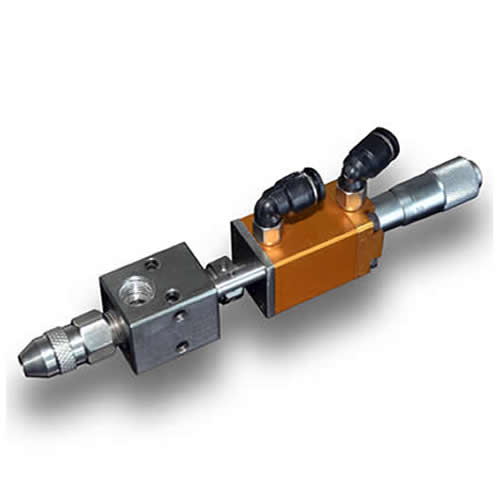

Micrometer high precision valve GR-D2121

Micrometer high precision valve GR-D2121

Plunger structure ,flow rate can be ajusted precisely by micrometer ,small size

and corrosion -resistant,it is suitable for UV glue ,paint ,oil etc .low viscosity,

and good fluidity glue.

  Model

  GR-D2121

  Air pressure

  0.4-0.7Mpa

  Min Dispensing volume

  0.01ml

  Applicable viscosity

  1-3000 cps

  Operating frequency

 <400 points/min

  Glue inlet dimension

  1/8"



Adjustable precision  valve GR-H2222

Adjustable precision  valve GR-H2222

Plunger structure ,small flow rate valve ,flow rate  can be ajusted ,small size and

corrosion -resistant,it is suitable for midium -high viscosity ,and poor fluidity glue,

such as silicon glue ,epoxy glue,grease,red glue,etc.

  Model

  GR-H2222

  Air pressure

  0.4-0.7Mpa

  Min Dispensing volume

  0.02ml

  Max viscocity

  1-100,000 cps

  Operating frequency

 <400 points/min

  Glue inlet dimension

  1/8"



Suck back  valve GR-H25

Suck back  valve GR-H25

The GR-H25 Suck-Back Valve is designed to prevent extra protection against

post-dispense dripping when dispensing medium to high viscosity liquids such

as sillicon ,grease, etc.

  Model

  GR-H25

  Air pressure

  0.4-0.7Mpa

  Min Dispensing volume

  0.1ml

  Max viscocity

  1-50,000 cps

  Operating frequency

 <400 points/min



V-1000

V-1000

Coating thickness can be adjusted by changing air pressure and moving speed.

Coating width can be adjusted by changing air pressure.

V-1000 coating valve is applied to areas where: 1.most of  coating .

  Model

  V-1000

  Spraying swath

  6-8mm

  Air pressure

  0.2-0.4Mpa

  Max viscocity

  1000 cps

  Edge definition

  1mm
