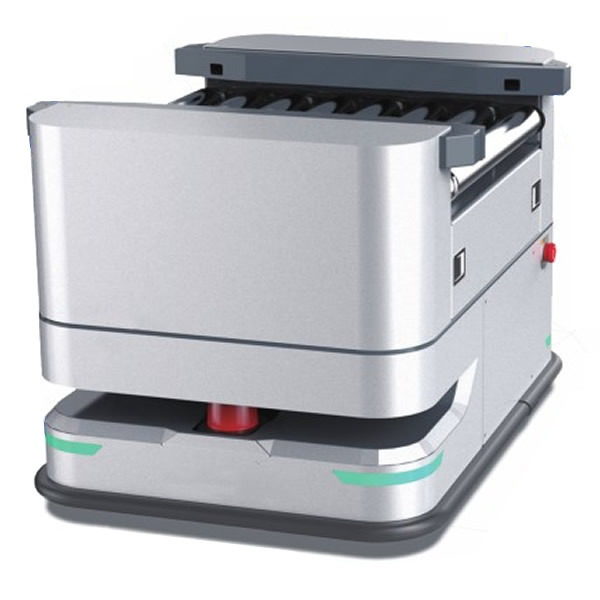

QR Code Navigation AGV SY-500Q

Quick Overview

The Max load capacity of this automatic guide vehicle is 500kg.After loading the materials by hand or industrial robot, the AGV can automatically drive to the feeding point entire transport process bar and the location setting. The entire transport process needn't human intervention. The operation is simple and the AGV doesn't conflicts with other units in logistics system. The machine adopts QR code navigation, accurate positioning, and the QR code can be reused.

QR Code Navigation AGV Features:

1. QR code navigation: QR code navigation, AGV realizes different motion paths by reading different QR codes, At the same time, use QR code positioning, positioning accuracy.

2. Handling capacity: maximum 500KG load.

3. Stable and efficient: Adopt industrial-grade devices, electrical modules, electromechanical structure to achieve 7 * 24 hours of continuous and reliable work.

4.The positioning is accurate, the navigation flexibility is better, and it is easier to lay, change or expand the path, which is convenient for controlling communication and controlling sound and light without interference.

5. Safety guarantee: multi-sensor obstacle avoidance, providing obstacle detection, collision detection, emergency braking and other multi-level safety protection.

6. Reliable communication: Intelligent wireless communication network and management system complete the communication function, industrial-grade wireless WIFI, support AP, AC.

QR Code Navigation AGV SY-500Q specification:

  Model

  SY-500Q

  Basic performance

  DImension: L; W; H   920*686*280mm
  Selt weight   120KG
  Load  capacity                                        500KG

  Running parameters

  Max running speed(empty load)    2.0m/s
  Max running speed(full load)   Go forward:1.5m/s
  Radius of gyration   578mm
  Gradeability   3degrees
  Obstacle height   10mm
  Across the width of the gap   30mm
  The gap off the ground                     25mm
  The width of the walkway                     Min800 mm
  Turning channel width                     Min1200 mm
  Site positioning accuracy                     ±10mm
  Navigation method   IMU + QR code
  Lifting height   50mm

  Battery performance

  Battery capacity     55V 20Ah
  Full charge running time   5-8h
  Charging way     Automatic, manual

   External interface

  Charging time     0.5 hour
  Power outlet   16000times
  Obstacle avoidance   Laser obstacle avoidance

  Laser Navigation AGV automatic charging station:

Functional advantages:

●   Intelligent automatic charging.

●   Small size and high efficiency.

●   Industrial design, safe and reliable.

automatic charging station

Specifications:

●   Voltage:220V

●   Quick charge: 60 minutes full

Scheme design-configuration list:

  No

  Name

  Model

  Product description

  Quantity

  Unit

  1

  AGV

  SY-500Q

  500KG QR code navigation + roller

  1

  pcs

  2

  Charging station

  ACS-1900

  Charging Station

  1

  pcs

  3

  server

   HETU-Server-Standard

   Recommended models: 2 dual hot standby, DL388Gen9 E5-2600v4 series models Single 2609V4 8 core 1.7G Configuration requirements: 2 dual hot standby, 8 core, 16G, 500G SSD hard drive, Gigabit network card

   1

   pcs

  4

  PC

  ThinkCentre E74-10KS000CC

  Computer-Desktop-Lenovo ThinkCentre Series Desktop

  1

  pcs

  5

  PDA

  X5A-304WLM

  Xiao Bang-X5A-304WLM 2D

  1

  pcs

  6

  Hetu software

  Hetu Software

  Hetu System Standard Edition

  1

  set

  7

  Wireless Controller

  EWP-WX2540H

  H3C WX2540H-EWPXZ12540H-6 port Gigabit (5GE-T + 1SFP) wireless controller

  1

  pcs

  8

  switches

  LS-S5110-28P-PWR

  Ethernet switch, 24 Gigabit POE network port, 4 Gigabit optical port

  1

  pcs

  9

  Wireless AP

  EWP-WA4320-ACN-FIT

  Wireless AP, support POE, 802.11ac /n

  1

  pcs

  10

  Wireless AP license

  LIS-WX-8-BE

  Wireless controller license, 8

  1

  set

  11

   Weak current cabinet

   TS.6022

   omputer peripherals-cabinet-600 * 1000 * 1255 server cabinet-hexagon mesh front door

   1

  pcs
