Laser Marking System LM450 series

Quick Overview

LM450 series is a  fully automatic laser marking machine  for marking 1D code, QR code, text, symbol or graphic on the surface of PCB. It consists of laser marking system, XY precision motion platform, CCD visual system for PCB positioning, conveyor with automatic width adjustment  and camera online barcode reading system. CO2 laser system/UV laser/Fiber laser is selectable for different application.

Laser Marking System LM450 series Description :

1.  Laser Marking System LM450 series  with compact  size, can be easliy intergrated into production line help you realize  automation.

2.  LM450 series can mount virous high quality laser head for different application, such as USA SYNRAD CO2 laser head,  INNO UV /Green laser head, Raycus fiber laser head.

3.  Capable to print 1D barcode, 2D Data matrix barcode, 2D QR code etc.

4.  X/Y axis adopt servo motor control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system.

5.  CCD +fiducial recognition system automatically correct the offset of PCB position.

6. Standard equipped with fume extrator ensures a clean environment.

7.  CCD barcode reader check the printed barcode to avoid defective barcode printed going to next process.

8.  Optional built in PCB flipping system realize automatic PCB flipping and double side marking.

9.  LM450-C is capable to connect with customer MES system.

10.  Industrial PC, full English interface with Windows 7 OS, professional software, easy to operate.

Laser Marking System LM450-C CO2 laser head  Features:

Laser Marking System LM450-C CO2 laser head  Features :

   ●   Laser head:Synrad’ s 48-series Rugged & reliable.

   ●   Wave length : 10640nm

   ●   More than 50,000 applications worldwide
    Service life : more than 40,000 hours.

   ●   Frequently used bar code format

Frequently used bar code format


Laser Marking System LM450-C  Features:

  Mark Sample with CO2 laser head :

Mark Sample with CO2 laser head :

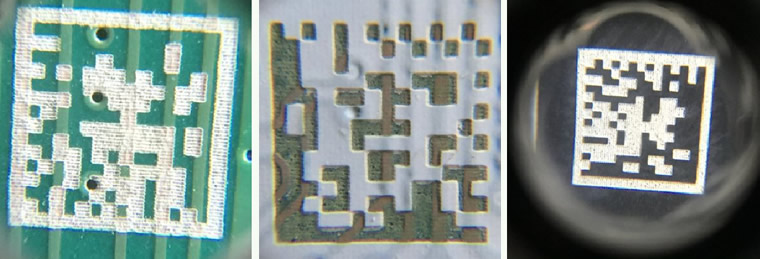

  Mark Sample with CO2  laser head  (under 60times microscope)

Mark Sample with CO2  laser head  (under 60times microscope)


Laser Marking System LM450-U  UV laser head  Features:

Laser Marking System LM450-U  UV laser head

   ●   Laser head:INNO laser

   ●   model :  FOTIA-355

   ●   Wave length : 355 nm

   ●   More than 50,000 applications worldwide
    Service life : more than 20,000 hours

   ●   UV laser application:

UV laser application


Laser Marking System LM450-G  Green laser head  Features:

Laser Marking System LM450-U  UV laser head

   ●   Laser head:INNO laser,

   ●  model : FOTIA-532

   ●   Wave length : 532 nm

   ●   More than 50,000 applications worldwide
     Service life : more than 20,000 hours

   ●   Suitable application: certain plastics, silicon and reflective metals material.

Suitable application:  certain plastics, silicon and reflective metals material.


Laser Marking System LM450-G  Fiber laser head  Features:

Laser Marking System LM450-G  Fiber laser head

   ●   Laser head:Raycus laser

   ●   model : RFL-P20QEr

   ●   Wave length : 1060 nm

   ●   More than 50,000 applications worldwide
     Service life : more than 50,000 hours

   ●   Suitable application: electronic components, hardware accessories, screen cover etc.

Suitable application: electronic components, hardware accessories, screen cover etc.


PCB Laser Marking Application comparison:

PCB Laser Marking Application comparison


Laser Marking System LM450 series Flipping system:

  Optional built in PCB flipping system  easily realize automatic PCB flipping and double side marking.

Laser Marking System LM450 series Flipping system


Laser Marking System LM450 series  Features:

Laser Marking System LM450 series

   ●   Standard equipped with fume extrator ensures a clean environment.

Laser Marking System LM-450  Specification :

  Model

  LM450-C

  LM450-U

  LM450-G

  LM450-F

  Laser type

  CO2   laser

  UV laser

  Green laser

  Fiber laser

  Laser wave length

  10640 nm

  355 nm

  532 nm

  1060 nm

  Laser head

  USA made Synrad laser system

  China made INNO UV laser

  China made INNO green laser

  China made Raycus fiber laser

  Laser power

  10 W

  5 W

 10 W

 20 W

  varifocal range

  2D laser

  Working method

 laser moving

  X/Y platform moving

  X/Y platform moving

 laser moving

  Laser cooling

  Forced air cooling

  Water cooling

  Water cooling

  Forced air cooling

  2D barcode marking

  2mm*2mm

  1.5 mm*1.5 mm

  1.5 mm*1.5 mm

 2mm*2mm

  Laser marking range

  55*55mm

  Repeatable positioning accuracy

   ±0.025mm

  Positioning system

  CCD+mark recognition

  Max PCB Size

  Standard with L450*W450mm   Option with PCB flipping system 450*450mm

  PCB Thickness

  0.5—3mm

  PCB Height

  UP:35mm  DOWN:15mm

  PCB Clamping system

  Standard  configuration

  Conveying System

  900+-20mm, left-right

  Marking object

  characters, 1D, 2D barcode, drawing data.

  Power supply

  1P , AC 220V, 50/60HZ

  Power

  1.5KW

  Machine size

  Machine size Standard :W 900*D 1480*H1650mm, W900*D1760*H1650mm with built in flipper

  Standard :W 900*D 1530*H1650mm  Standard :W 900*D 1530*H1650mm   Standard :W 900*D 1555*H1650mm

  Machine weight

  Approx standard : 650KG, 800KG with flipper

  Approx standard : 650KG   Approx standard : 650KG   Approx standard : 650KG

Laser Marking System LM450 series configuration:

Standard configuration:

●   Laser marking system with X/Y servo motor and ball screw.

●   Industrial PC, monitor, Keyboard, mouse.

●   CO2   laser system or UV laser , or Fiber laser.

●   CCD with Fiducial mark recognition function.

●   CCD barcode reading system.

●   Fume extractor

●   Automatic conveyor width adjustment.

●   1 year warranty.



Optional configuration:

●   Automatic PCB Flipping system.

●   Connection with MES.

●   Additional bar code reading camera.
