Large board Dispensing Machine LD-600

Quick Overview

Standard configuration:

X/Y axis controlled by servo motor& ballscrew, max speed 1000mm/s.

Max W580*D580mm PCB capable

Repeatable accuracy: +/-0.05mm

Nozzle temperature control system

Nozzle vacuum cleaning/paper cleaning system.

Liquid level in tube detecting system.

X/Y/Z axis auto correction platform.

Visual system

not including valve


Valve Option:

China made penumatic jet valve Jet-6000

Air pressure boosting pump (for penumatic jet valve)

VERMERS Piezoelectric jet valve

TECHCON TS5000DMP rotary valve

China made Piezoelectric jet valve VD-1000


Conveyor option:

Rail bottom heating device


Software option:

High precision glue weighing system

Laser height detecting system

Bar code reading system

Large Board Dispensing Machine LD-600 Details:

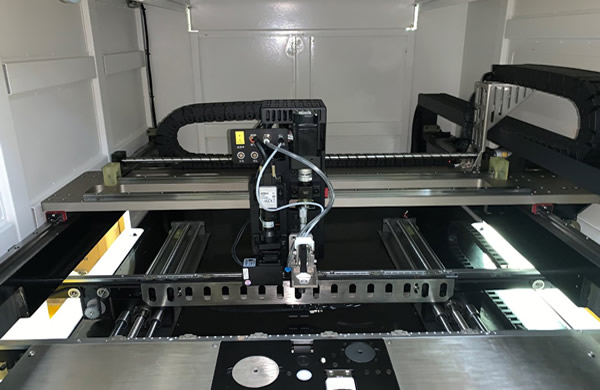

Solid motion platform ,X/Y/Zaxis is controlled by Panasonic servo motor ,max running speed can reach 1500mm/s.

●   Solid motion platform for LED board dispensing, X/Y axis is controlled by Fuji servo motor, max running speed can reach 1000mm/s.



Standard equipped with high precision peumatic jet valve JET-6000 .VERMERS Piezoelectric jet valve is optional.

●   Various high precision valve such as peumatic jet valve, piezoelectric jet valve, screw valve is choosable, to meet different dispensing requirement.



Material level detection.

●   Material level detection.

●   Nozzle temperature control.



X/Y/Z correction platform.

●   X/Y/Z correction platform.

●   Nozzle suction cleaning.

●   Glue weighing device (option).



Keyence laser height detecting system to correct the dispensing height.

●   Keyence laser height detecting system to correct the dispensing height.



Large Board Dispensing Machine LD-600 Software:

1、Full english interface ,software based on Windows 7 OS, easy to operate, It can realize Laser positioning, dot, line, circle, arc instruction.

Full english interface ,software based on Windows 7 OS, easy to operate , It can realize Laser positioning, dot , line ,circle, arc instruction.

2、Search function: Only need to edit one dispense location when PCB has many same components, others can be searched automatically and use the same dispense program to edit them.

3、It can locate fast through the images . Camera will locate the relevant position when click the image at the same time. It is very convenient to find the components.

It can locate fast through the images . Camera will locate the relevant position when click the image at the same time . It is very convenient to find the components.

4、Whole Panel Function, easy to setup panel with sub-program function.

5、Automatically check the dot image, and alarm if the dot is defective.

6、Software can load CSV file etc directly.



Large Board Dispensing Machine LD-600 Valve:

Peumatic Jet valve JET-6000 Features

 Jet Valve JET-6000 Specifications

  Air Pressure (Min)

  0.7 Mpa

  Dispensing freqency RPM(Max )

  200 times/S

  Best Feed Pressure

  0~0.3Mpa

  Dot Diameter(Min)

  0.6mm

  Dot Weight(Min)

  0.024mg

  Best Viscosity Range

  3000~130000Cp

  Nozzle Heating Temp.(Max)

  80℃

Peumatic Jet valve JET-6000 Features
Application :
underfill
Pin encapsulating
conformal coating
package on package
dam&fill
Red glue dispensing
COB package


Large Board Dispensing Machine LD-600 Valve:

Piezoelectric Jet Valve  VD-1000 Features

●   Extremely fast opening and closing of valve at full stroke with up to 3000 Hz.

●   Freely adjustable parameter settings allow customizing the jet properties to require-- ments and fluid properties.

●   Electronic control unit allows change of dispensing parameters without delay.

●   High repeatability of drop-to-drop dispensing volume for media of all viscosities.

●   Converting the force of the latest generation piezo through sophisticated mechanics.

Piezoelectric Jet Valve VD-1000.jpg

  Piezoelectric Jet Valve  VD-1000 Specifications

  Control mode

  Piezoelectric

  Dispensing freqency RPM(Max )

  3000HZ

  Best Feed Pressure

  0~0.3Mpa

  Dot Diameter(Min)

  0.5mm

  Dot Weight(Min)

  0.024mg

  Best Viscosity Range

  3000~130000Cp

  Nozzle Heating Temp.(Max)

  80℃

Application :
underfill
Pin encapsulating
conformal coating
package on package
dam&fill
Red glue dispensing
COB package

Large Board Dispensing Machine LD-600 Features :

●    Solid motion platform for LED board dispensing, X/Y axis is controlled by Fuji servo motor, max running speed can reach 1000mm/s.

●    Various high precision valve such as peumatic jet valve, piezoelectric jet valve, screw valve which can meet different dispensing requirement.

●    Equipped with vacuum cleaning device/paper cleaning device, which improved the nozzle cleaning effect.

●    Keyence laser height detecting system(Option) to correct the dispensing height.

●    Material level detecting  in syringe fuction , machine will alarm when material is insufficient.

●    Equipped with X/Y/Z auto correction platform.

●    Glue weighing function (Option) gurantees precise dispensing.

●    Industrial CCD and it's mark positioning function.

●    Teaching with CCD for programming , support loading CAD file.

●    Automatic detection of glue size, machine will alarm if detect unqualified glue point.

●    Industrial PC ,Windows operation system , full english interface ,very easy to use.

 Large Board Dispensing Machine LD-600 specification :

  Model

  LD-600

  Overall size

  1100*1390*1500(L*W*H)

  Control method

  Industrial PC, full English software based on Windows 7 OS

  Visual System

  1.3 million pixels CCD, fiducial mark recognition and automatic correct coordinate offset.

  Conveyor

  One section conveying , conveying height : 900+/- 20mm, left to right only.

  Width adjustment

  Single Lane: 80~580mm, automatic width adjustment

  X/Y axis Drive  Model

  Servo Motor

  Z Axis Drive Mode

  Servo Motor

  Maximum Speed

  X/Y : 1000mm/S

  Repeatable Accuracy

  0.025mm

  Dispensing  Area

  X=580mm, Y=580mm

  Valve Heating

   Room Temperature~80℃±3℃

  Material Volume

  30CC Or 50CC

  Material Detection

  Automatically Inspect glue dispensing size.

  Nozzle Cleaner

  Vacuum Cleaning & Paper cleaning

  Communication Connector

  SMEMA

  Program Method

  CAD file load, Manual Teaching.

  Power Supply

   1P,220V   50~60HZ

  Air Pressure

  7kg/cm2

  Power

  Max 2.5KW

  Machine Weight

  680kg

Large Board Dispensing Machine LD-600 configuration:

Standard machine includes :

●   X/Y/Z  axis controlled by servo motor.

●   Industrial PC ,monitor, Keyboard,mouse.

●   1 section conveyor controlled by step motor with automatic adjustment.

●   3 color alarm lamp.

●   CCD visual system.

●   Nozzle heating.

●   Nozzle cleaning device.

●   Liquid level in tube detecting device.

●   X/Y/Z axis auto correction platform.

●   SMEMA cable.

●   1 year parts warranty.


Optional configuration:

●   China made pneumatic jet valve.

●   VERMERS Piezoelectric jet valve.

●   China made piezoelectric jet valve.

●   Precision glue weighing system.

●   Laser height detecting system.

●   Air pressure boosting pump(for pneumatic jet valve).

●   Bottom heating device.

●   Bar code reading system.
