Hot Bar Soldering Machine HBS-A3

Quick Overview

HBS-A3 Hot Bar Soldering Machine use thermode technology that based on repid reflow by pluse heating to effectively solder flexible board on the PCB .Real time display on the touch screen.CCD+displayer can accurate positioning  and  soldering quality check.

Hot Bar Soldering Machine  HBS-A3 specification :

  Model

  HBS-A3

  Y-axis movement mode

  cylinder

  Way of starting

   Start button

  Soldering head size

  MAX 60*5mm(Or customized)

  Minimum soldering pitch

  0.2mm

  power

  AC220V±10% 50HZ,2300W

  Soldering time

  1~99.9s adjustable

  Work pressure

  0.45-0.70Mpa

  Temperature setting

  RT ~ 500 ± 5 DEG C

  Machine weight

  75kg

  Soldering pressure

   1~20kg

  Work size

  Max 200*170mm

  Work environment

   10-60℃

  Machine Size

  660*660*700mm

Hot Bar Soldering Machine  HBS-A3 Application :

  Advantages: ultra-fine spacing welding can be achieved; Digital temperature display; Soldering speed 3-5s

  Suitable for :

  1.FPC-PCB soldering

  2.FPC-FPC soldering

  3.FPC- ceramic wafer soldering

  4.FPC- ink cartridge plus chip soldering

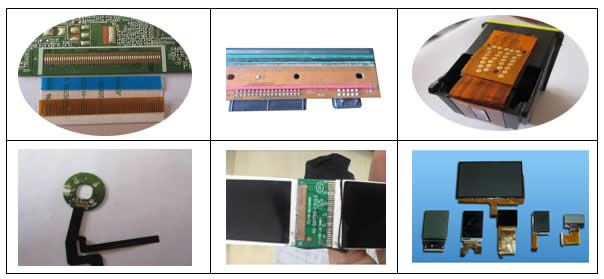

  Application

Hot Bar Soldering Machine  HBS-A3 Configuration:

1.Magnetic cylinder sensor switch : SMC

2.Solenoid valve : made in Taiwan

3.Connectors and trachea : made in Taiwan

4.Filter regulator : made in Taiwan

5.Precision cylinder under pressure regulator : SMC

6.Control system: independent research and development ( Chinese )

7.Power transformer : 220V, 2000W

8.Driver module : 45A

9.Vacuum Generators : SMC

10.Button switch: Schneider

11.Relay: Omron

12.Chassis components: aluminum plus bending parts

13.Body color:gray



Hot Bar Soldering Machine  HBS-A3 Standard configuration :

●   Hot Bar Soldering Machine

●    Start button*1pcs

●     CCD+display*1set

●     Touch screen programming interface*1set

●     Air pipe*1pcs

●    1 year parts warranty



Hot Bar Soldering Machine  HBS-A3 Optional configuration :

●    Customized  precision fixture.

●     Customized Soldering tip

●    Start button

●     Emergency Stop button

●     Power switch button
