Double liquid Potting Machine DLP-400A

Quick Overview

Gear pump for metering, screw pump is optional.

Material loading by vacuum pump.

Material agitating and deforming by vacuum pump.

Metering ratio is adjustable.

Metering accuracy :±3%.

Dynamic mixing head.

PLC and touch screen control.

Full English interface.

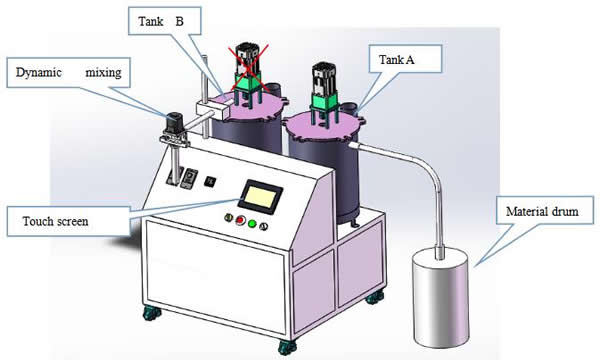

Working principles of dual fluid potting machine:

1.Vacuum pump suck material A, B from 5KG drum to the storage tank .

2.Set the mixed proportion on the software .

3.Material A, B metering by gear pump are delivered to mixing head.

4.Mix material A/B with dynamic or static mode, so as to ensure an adequate mixing.

5.Mixed material be potted into the product trough mixing tube .


Details:

Details




Dynamic mixing head

1. Dynamic mixing head

The tube mixer is driven by a mixing motor, so as to make the glue mixed uniformly


2.Gear pump

2.Gear pump

1.Stable pressure , not stirred by vortex flush .

2.Compact size , simply structure ,easy for maintenance .

3.Controlled by precise step motor with high glue pumping accuracy.




Features of the A B glue potting system :

●    The A B potting system adopt touch screen and PLC operating system.

●    Material A adopt gear pump for metering controlled by step motor.

●    Material B adopt gear pump for metering controlled by step motor.

●    Tank A is equipped with material agitating device to prevent precipitation.

●    Metering ratio is adjustable by required ratio ±10%.

●    Potting speed is adjustable.

●    A /B material mixing accuracy is ±3%.

●    Equipped with dynamic mixing driven by AC motor,or static mixing tube which can make a uniform potting process.

●    Equipped with vacuum pump for loading material and material deforming.

●    Equipped with 2L cleaning tank for valve and mixing tube cleaning.

●    Equipped with Pipe A/B pressure sensor to prevent exploding by high pressure.

●    Full English software , easy to operate.

 Parameters of the A/B glue potting part  specification :

  Model

  DLP-400A

  Metering ratio

  Adjustable, required ratio ±10%

  Material A tank capacity

  15L,25L

  Material B tank capacity

  15L,25L

  Material A tank agitating

  Yes

  Material B tank agitating

  Optional

  Material A tank with hose heating

  Optional

  Material B tank with hose heating

  Optional

  Cleaning tank

  2L

  Material A metering

  Volume metering by gear pump or screw pump with step motor control

  Material B metering

  Volume metering by gear pump or screw pump with step motor control

  Mixing mode

   Dynamic mixing or static mixing

  Control mode

  PLC control

  Air supply

  0.4~0.7 MPa

  Power supply

  1P, AC220V  50Hz

  Dimensions

  Approx  700L*650W*1100H(mm),the machine size might differ according to tank dimension

  Weight

  180kg

Option:

●    Material A tank with hose heating.

●    Material B tank with hose heating.

●      Material B tank agitating.

●    GR-400S 3 axis dispensing platform.
