PCB is moved by X/Y table with servo motor, Solder pot is moved in Z with servo motor, drop jet flux is moved in Z with aircylinder.
Shipping Within Europe About the EU shipping,pls send e-mail to us at info@1clicksmt-europe.com , maz@lavortec.com or call our professional sales engineer at +41 (0) 76 778 40 07 Shipping Outside EU About the World shipping,pls send e-mail to us at sales@1clicksmt sales@1clickmachine.com or call our professional sales engineer at +86-0769-85303739 On Skype: any questions,pls feel free to contact us by skype-oneclickmachine |
|
Spray Flux ● Flx-DropJet : Standard equipped with drop jet valve from Germanny originally, which can meet dia 2mm flux dot dimension. | |
Selecting Soldering Pot ● Titanium soldering pot, 100% capable for lead free application. Standard equipped with mechanical pump, easy for maintenance. ● N2 direct heating system is standard equipped,enhance the wetting ability for lead free sodlering. | |
Live camer ● Sod-ProcMoni: Without open machine's door, operator can see soldering process in real time. | |
Preheating ●Pre-BPRE: Bottom preheating zone, before soldering PCB will move here to heat up setting time under setting temperature. | |
Solder nozzle ● Sod-WetNoz: Standard equipped with wet nozzle for customer's universal applicaiton. Can also design solder nozzle according cusotmer's application. |
Offline Selective Soldering Machine Ant-i1 Features: |
● Small footprint, only W990mm x D1308mm. |
● Max board L350mm x W260mm (Can manually rotate board to 180degree to meet L700mm x W260mm). |
● English Windows 10 interface. |
● 3 servo motors and servo drivers for motion. |
● Drop jet fluxer made in German. |
● Solder pot system with capacity 15kgs. |
● Wave height calibration system. |
● Bottom IR preheating zone. |
● “on-time” liver camera to show soldering process. |
● Pre-maintenance count down function. |
Ant-i1 Specifications | |
Item | Ant-i1 |
General |
|
Operating power/Max power | 4KW/6.5KW |
PCB dimension | 50x50---350x260mm (Can manually rotate board to 180degree to meet L700mm x W260mm) |
Machine dimension | W990mm X D1308mm X H1714MM |
Net weight | 400KG |
Power supply | 1PH 220V 50HZ MAX 30A Equip 40A contactor in factory |
Air supply | 3-5 bars |
Exhausting required | 200M3/h |
Solder Management |
|
Standard Solder Stations | 1 |
Solder Pot Capacity | 15 kgs |
Heat-Up Time | About 40mins |
Solder Pot heater | 380 ℃ |
Solder Pot heater | 1.2kw |
Solder Nozzles |
|
Mini Wave Nozzles | Dia 2 to 8mm |
Customized nozzle | Available |
Nozzle Material | Proprietary Alloy |
(N2) Inertion Management |
|
N2 heater | Standard Equipped |
N2 Temp PID Control Range | 0 - 300℃ |
N2 Consumption per Nozzle | 1.5m3/H |
Required N2 Purity | >99.99% |
Flux Management |
|
Spray Flux Nozzle | Standard equipped with drop jet nozzle made in Germany |
Flux Capacity | 1L |
Flux Tank | Constant pressure tank |
preheat |
|
IR heater | 2kw |
Controlling System |
|
Industrial PC | Yes |
Typical Program Time | 10 Minutes |
Program method | Draw path in scanned picture of board |
Controlling system | PC |
Solder It “Solder it” is windows10 based software. With board scanned picture or Gerber file, “POINT AND CLICK” to “draw and drag” motion path easily, make the initial programming in less than 10 minutes. Path programming : | |
“Point and Click” ● to draw path with scanned picture as background, easiest way for path programming. | |

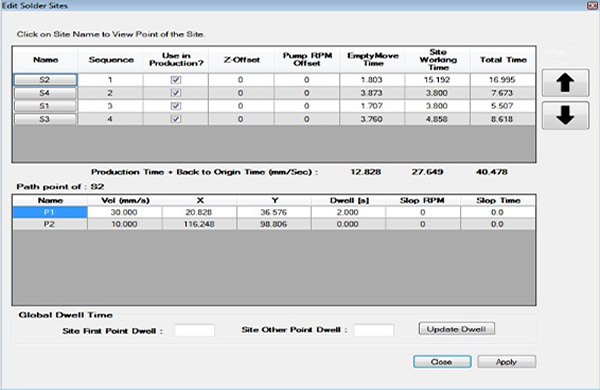

Solder path editing: ● Moving speed,Z height, wave height, Dwell time, wave slope speed etc are editable, get max flexibility to fit different type of components on the board. Empth move time, site working time, total cycle time are estimated once path programming finished. Easy for balance production line. | |
Maintenance & replacement assisting function : ● we know how important the maintenance for a selective soldering machine. In the software, we list all maintenance job, time taking, comsumable parts life and remain life, etc. It can export to excel list, engineer can check what parts need to replace in next 3 month or 6 months, in this way to they can prepare everything in advance. |
